22JXF3K
Standard Planetary Gearbox · Spur gear
Overview
Outer Diameter22 mm
Rated Output Torque0.03–0.3 N·m
Reduction Ratio4:1 – 2418:1
Number of Stages1–5
Ring Gear MaterialSintered Powder Metal

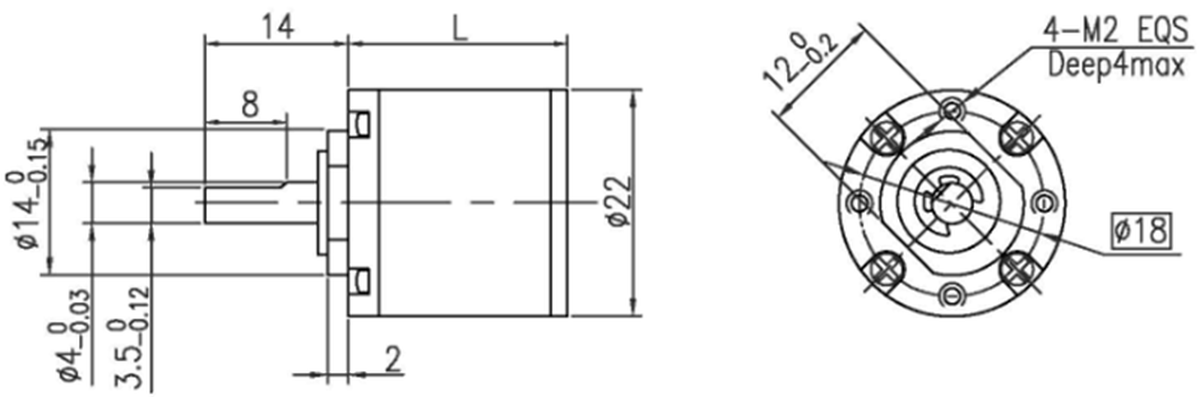

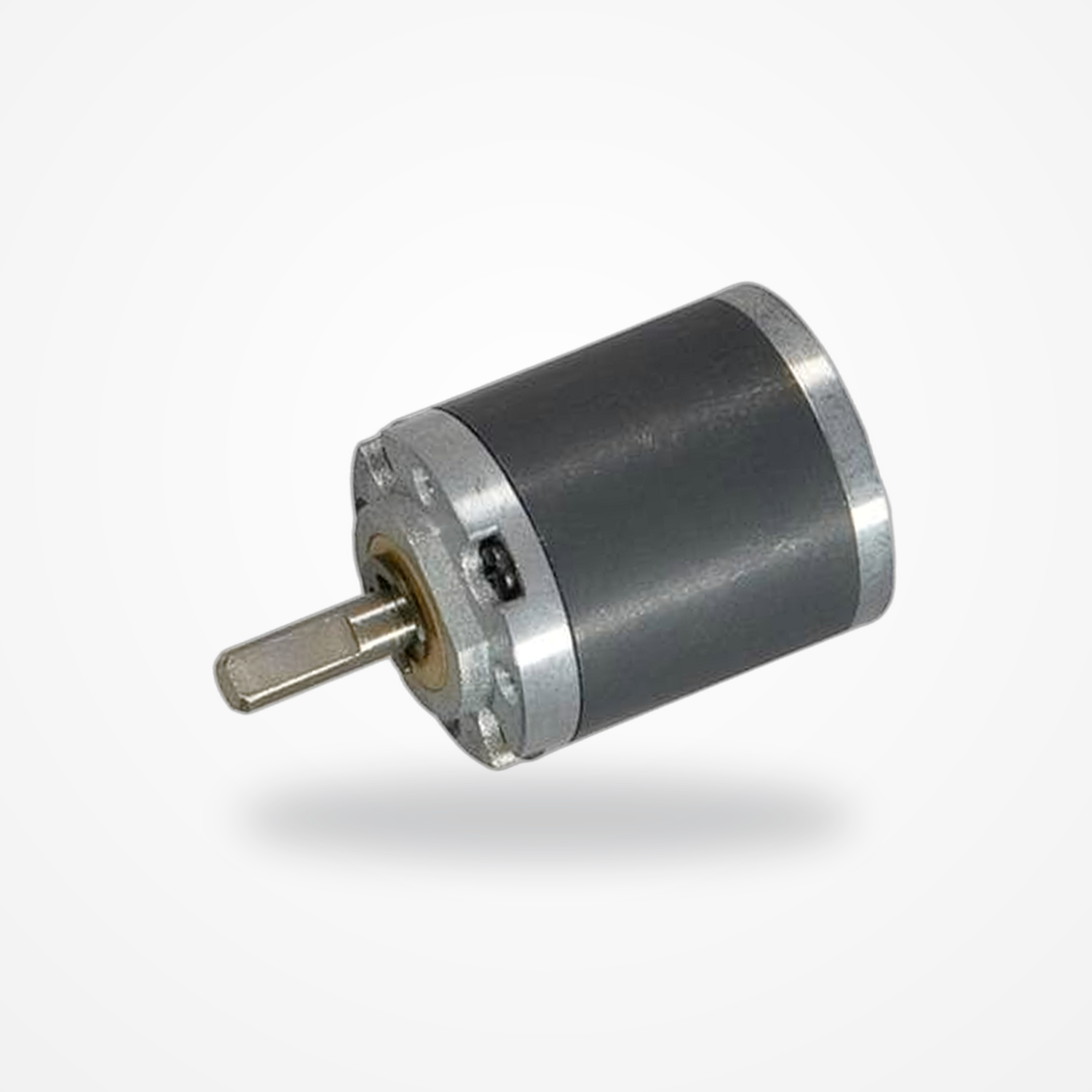

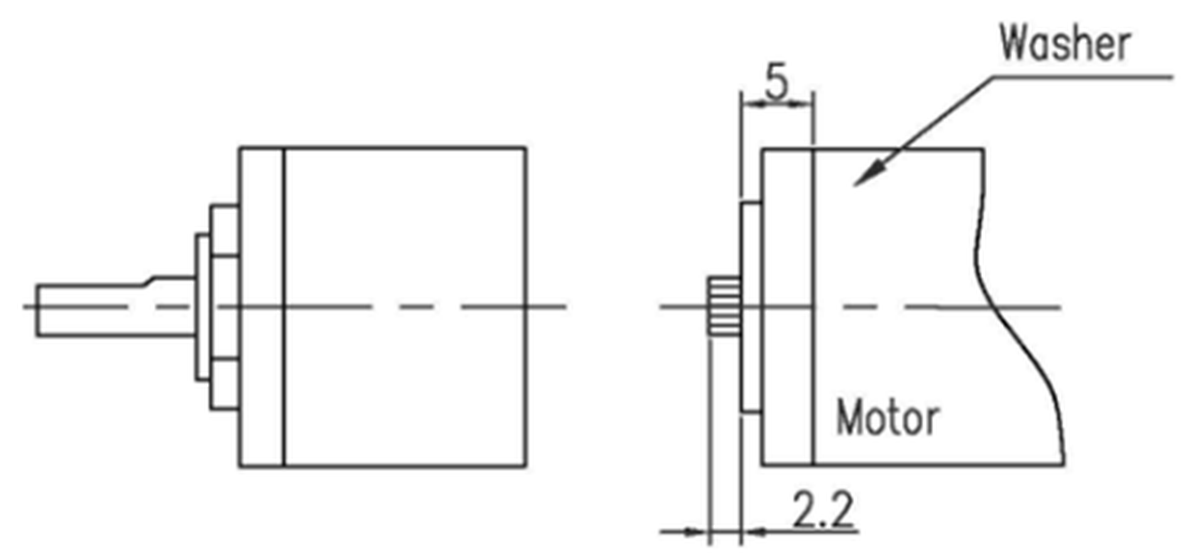

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 2230004 | 1 | 4.0000:1 | 0.03 | 90 | 1.5 | 13 | 23 | View SKU |
| 2230005 | 1 | 4.7500:1 | 0.03 | 90 | 1.5 | 13 | 23 | View SKU |
| 2230016 | 2 | 16.00:1 | 0.12 | 81 | 1.8 | 16.7 | 29 | View SKU |
| 2230019 | 2 | 19.00:1 | 0.12 | 81 | 1.8 | 16.7 | 29 | View SKU |
| 2230023 | 2 | 22.56:1 | 0.12 | 81 | 1.8 | 16.7 | 29 | View SKU |
| 2230064 | 3 | 64.00:1 | 0.24 | 73 | 2 | 20.4 | 35 | View SKU |
| 2230076 | 3 | 76.00:1 | 0.24 | 73 | 2 | 20.4 | 35 | View SKU |
| 2230090 | 3 | 90.25:1 | 0.24 | 73 | 2 | 20.4 | 35 | View SKU |
| 2230107 | 3 | 107.17:1 | 0.24 | 73 | 2 | 20.4 | 35 | View SKU |
| 2230256 | 4 | 256.00:1 | 0.3 | 66 | 2.5 | 24.1 | 41 | View SKU |
| 2230304 | 4 | 304.00:1 | 0.3 | 66 | 2.5 | 24.1 | 41 | View SKU |
| 2230361 | 4 | 361.00:1 | 0.3 | 66 | 2.5 | 24.1 | 41 | View SKU |
| 2230429 | 4 | 428.69:1 | 0.3 | 66 | 2.5 | 24.1 | 41 | View SKU |
| 2230509 | 4 | 509.07:1 | 0.3 | 66 | 2.5 | 24.1 | 41 | View SKU |
| 2231024 | 5 | 1024.00:1 | 0.3 | 59 | 2.5 | 27.7 | 47 | View SKU |
| 2231216 | 5 | 1216.00:1 | 0.3 | 59 | 2.5 | 27.7 | 47 | View SKU |
| 2231444 | 5 | 1444.00:1 | 0.3 | 59 | 2.5 | 27.7 | 47 | View SKU |
| 2231715 | 5 | 1714.75:1 | 0.3 | 59 | 2.5 | 27.7 | 47 | View SKU |
| 2232036 | 5 | 2036.27:1 | 0.3 | 59 | 2.5 | 27.7 | 47 | View SKU |
| 2232418 | 5 | 2418.07:1 | 0.3 | 59 | 2.5 | 27.7 | 47 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.3 | 12 | 20° | — | 1.48 / 1.98 |
| 0.3 | 15 | 20° | — | 1.48 / 1.98 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load8 N
Max. Permissible Axial Load6 N
Max. Input Speed10000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 22JXF3K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
