24JN10K
Standard Planetary Gearbox · Spur gear
Overview
Outer Diameter24 mm
Rated Output Torque0.1–1 N·m
Reduction Ratio3.71:1 – 3736:1
Number of Stages1–5
Ring Gear MaterialMetal

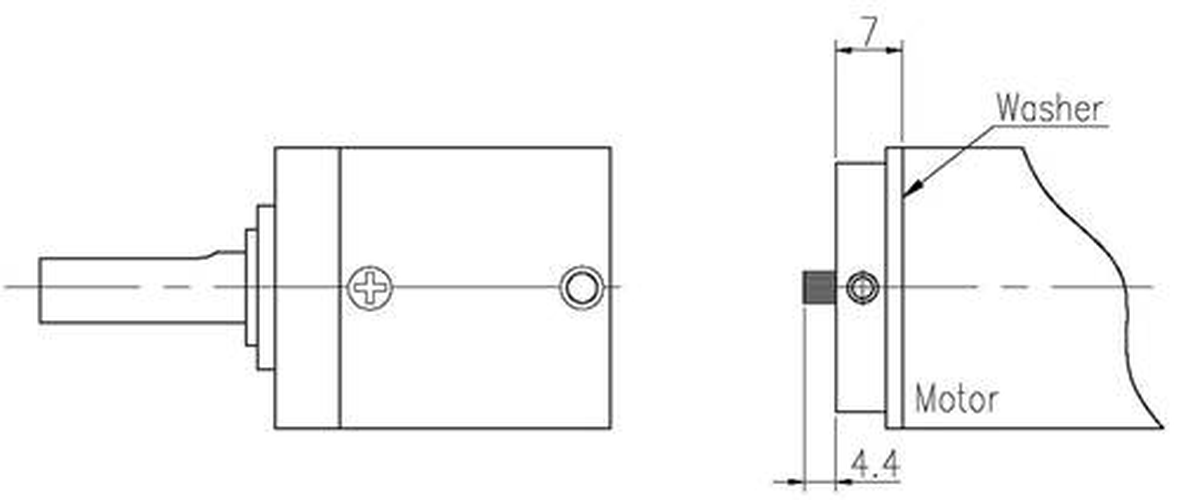

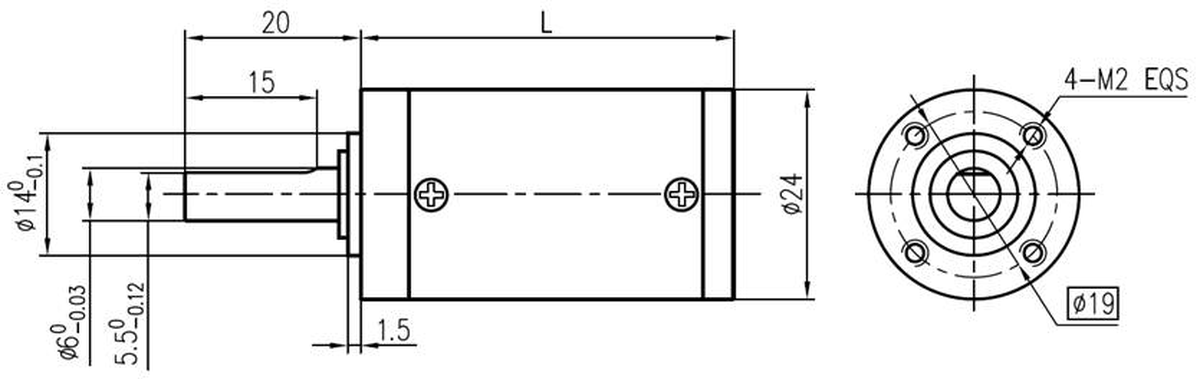

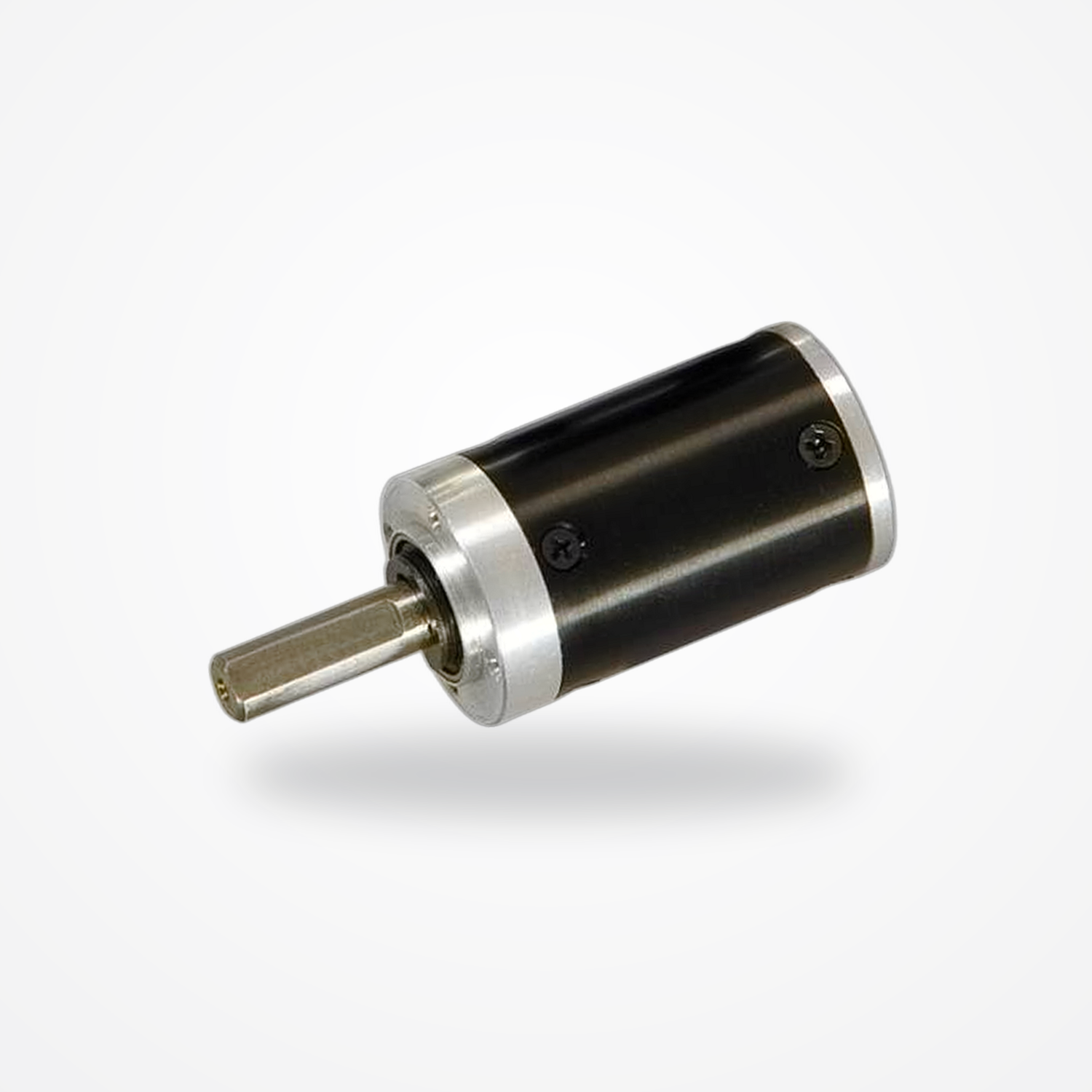

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 2420004 | 1 | 3.7059:1 | 0.1 | 90 | 1.5 | 24.4 | 40 | View SKU |
| 2420005 | 1 | 5.1818:1 | 0.1 | 90 | 1.5 | 24.4 | 40 | View SKU |
| 2420014 | 2 | 13.73:1 | 0.4 | 81 | 1.8 | 31 | 47 | View SKU |
| 2420019 | 2 | 19.20:1 | 0.4 | 81 | 1.8 | 31 | 47 | View SKU |
| 2420027 | 2 | 26.85:1 | 0.4 | 81 | 1.8 | 31 | 47 | View SKU |
| 2420051 | 3 | 50.89:1 | 0.8 | 73 | 2 | 37.4 | 56 | View SKU |
| 2420071 | 3 | 71.16:1 | 0.8 | 73 | 2 | 37.4 | 56 | View SKU |
| 2420100 | 3 | 99.51:1 | 0.8 | 73 | 2 | 37.4 | 56 | View SKU |
| 2420139 | 3 | 139.14:1 | 0.8 | 73 | 2 | 37.4 | 56 | View SKU |
| 2420189 | 4 | 188.61:1 | 1 | 66 | 2.5 | 43.8 | 65 | View SKU |
| 2420264 | 4 | 263.73:1 | 1 | 66 | 2.5 | 43.8 | 65 | View SKU |
| 2420369 | 4 | 368.76:1 | 1 | 66 | 2.5 | 43.8 | 65 | View SKU |
| 2420516 | 4 | 515.63:1 | 1 | 66 | 2.5 | 43.8 | 65 | View SKU |
| 2420721 | 4 | 720.99:1 | 1 | 66 | 2.5 | 43.8 | 65 | View SKU |
| 2420977 | 5 | 977.35:1 | 1 | 59 | 2.5 | 50.2 | 74 | View SKU |
| 2421367 | 5 | 1366.59:1 | 1 | 59 | 2.5 | 50.2 | 74 | View SKU |
| 2421911 | 5 | 1910.86:1 | 1 | 59 | 2.5 | 50.2 | 74 | View SKU |
| 2422672 | 5 | 2671.90:1 | 1 | 59 | 2.5 | 50.2 | 74 | View SKU |
| 2423736 | 5 | 3736.03:1 | 1 | 59 | 2.5 | 50.2 | 74 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.4 | 11 | 20° | — | 2.02 / 2.32 |
| 0.4 | 17 | 20° | — | 2.02 / 2.32 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load50 N
Max. Permissible Axial Load30 N
Max. Input Speed10000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
