32JM30K
Precision Planetary Gearbox · Spur gear
Overview
Outer Diameter32 mm
Rated Output Torque0.3–3 N·m
Reduction Ratio3.71:1 – 3090:1
Number of Stages1–5
Ring Gear MaterialMetal

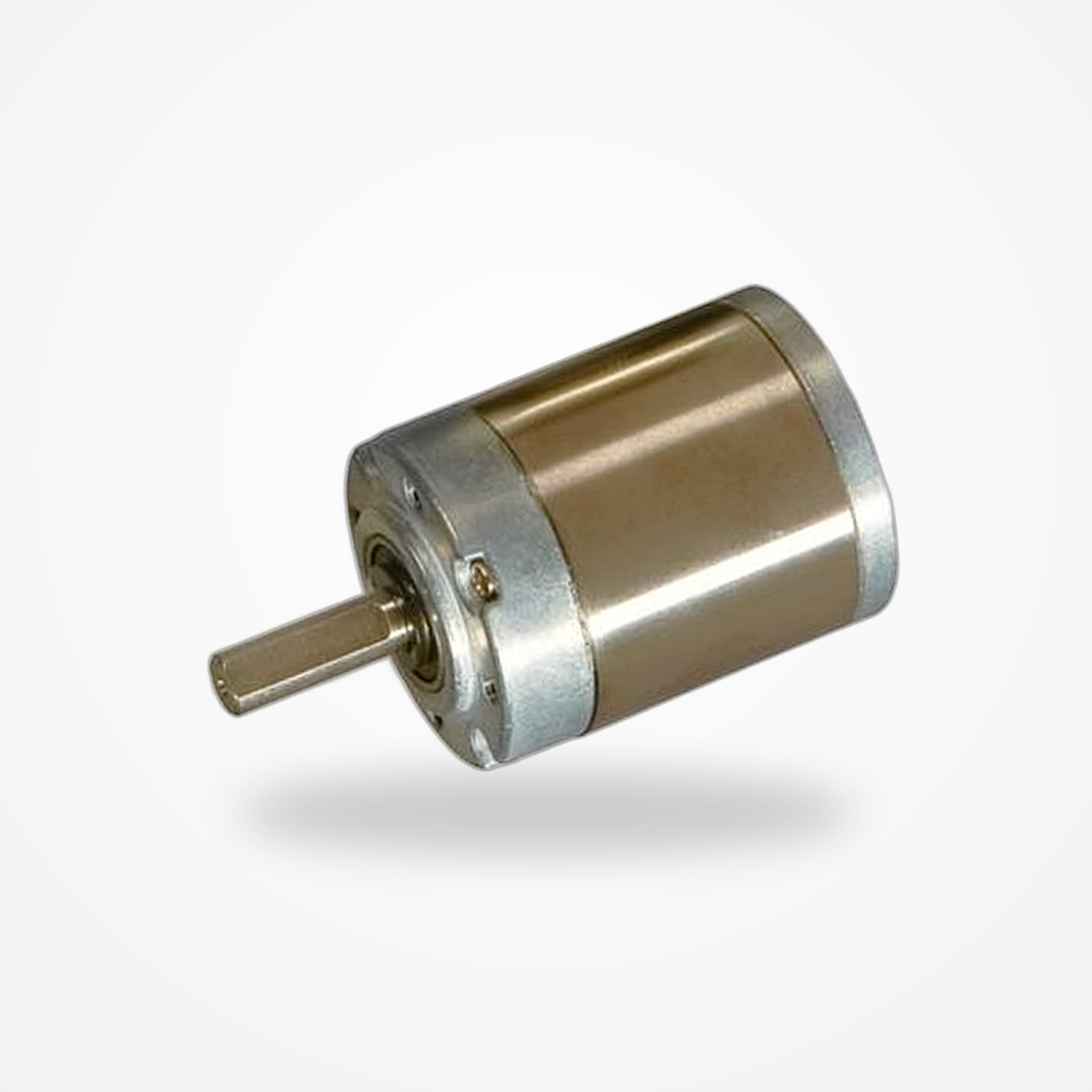

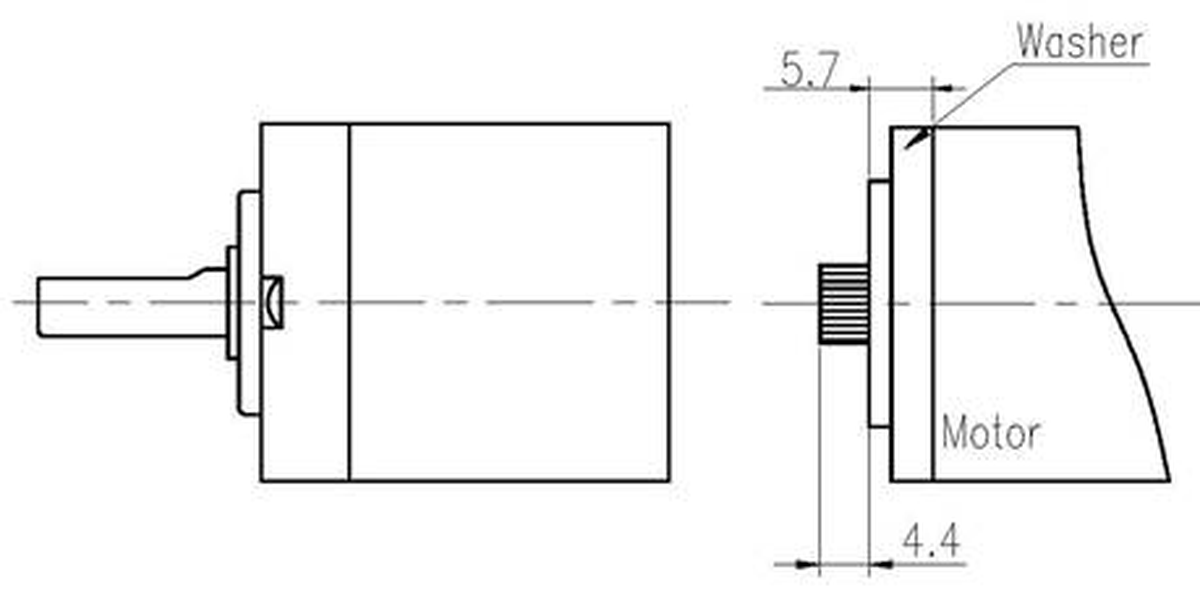

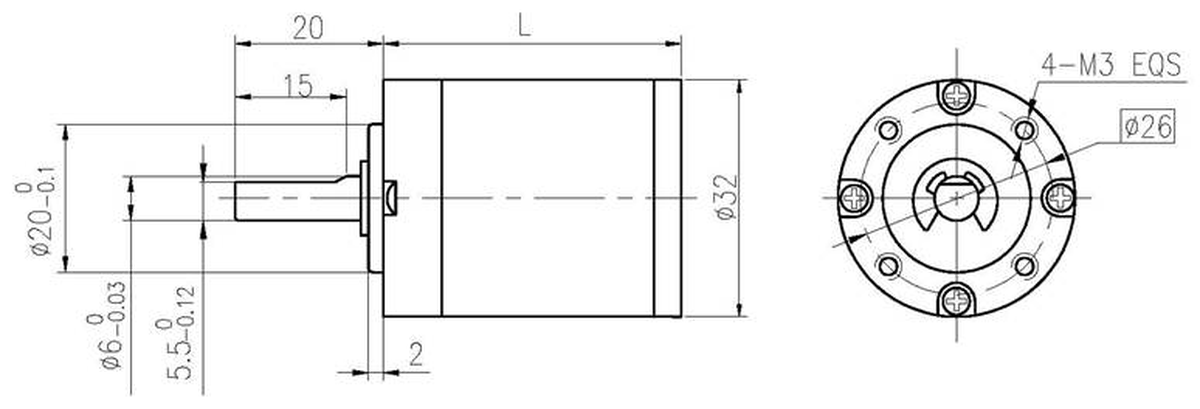

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 3210004 | 1 | 3.7059:1 | 0.3 | 90 | 0.8 | 25.7 | 120 | View SKU |
| 3210005 | 1 | 5.1818:1 | 0.3 | 90 | 0.8 | 25.7 | 120 | View SKU |
| 3210014 | 2 | 13.73:1 | 1.2 | 81 | 1.2 | 32.8 | 156 | View SKU |
| 3210019 | 2 | 19.20:1 | 1.2 | 81 | 1.2 | 32.8 | 156 | View SKU |
| 3210027 | 2 | 26.85:1 | 1.2 | 81 | 1.2 | 32.8 | 156 | View SKU |
| 3210035 | 2 | 34.98:1 | 1.2 | 81 | 1.2 | 32.8 | 156 | View SKU |
| 3210051 | 3 | 50.89:1 | 2.5 | 73 | 1.5 | 39.7 | 189 | View SKU |
| 3210071 | 3 | 71.16:1 | 2.5 | 73 | 1.5 | 39.7 | 189 | View SKU |
| 3210100 | 3 | 99.51:1 | 2.5 | 73 | 1.5 | 39.7 | 189 | View SKU |
| 3210139 | 3 | 139.14:1 | 2.5 | 73 | 1.5 | 39.7 | 189 | View SKU |
| 3210181 | 4 | 180.96:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210218 | 4 | 218.12:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210253 | 4 | 253.03:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210305 | 4 | 304.99:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210354 | 4 | 353.80:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210426 | 4 | 426.46:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210495 | 4 | 494.71:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210596 | 4 | 596.31:1 | 3 | 66 | 2 | 46.6 | 222 | View SKU |
| 3210808 | 5 | 808.32:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3210938 | 5 | 937.70:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3211130 | 5 | 1130.26:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3211311 | 5 | 1311.16:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3211580 | 5 | 1580.41:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3211833 | 5 | 1833.35:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3212210 | 5 | 2209.84:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3212564 | 5 | 2563.52:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
| 3213090 | 5 | 3089.95:1 | 3 | 59 | 2 | 53.4 | 255 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.5 | 11 | 20° | — | 3.16 / 3.48 |
| 0.5 | 17 | 20° | — | 3.16 / 3.48 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load100 N
Max. Permissible Axial Load50 N
Max. Input Speed10000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 32JM30K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
