38GPC100K
Servo Planetary Gearbox for Coreless Motors · Spur gear
Overview
Outer Diameter38 mm
Rated Output Torque1.5–10 N·m
Reduction Ratio3.71:1 – 3090:1
Number of Stages1–5
Ring Gear MaterialMetal

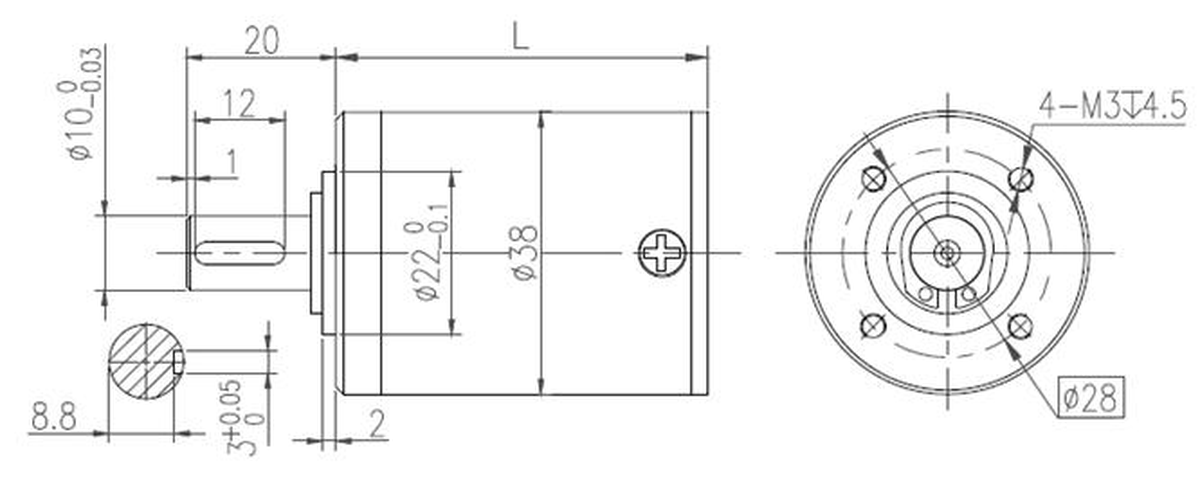

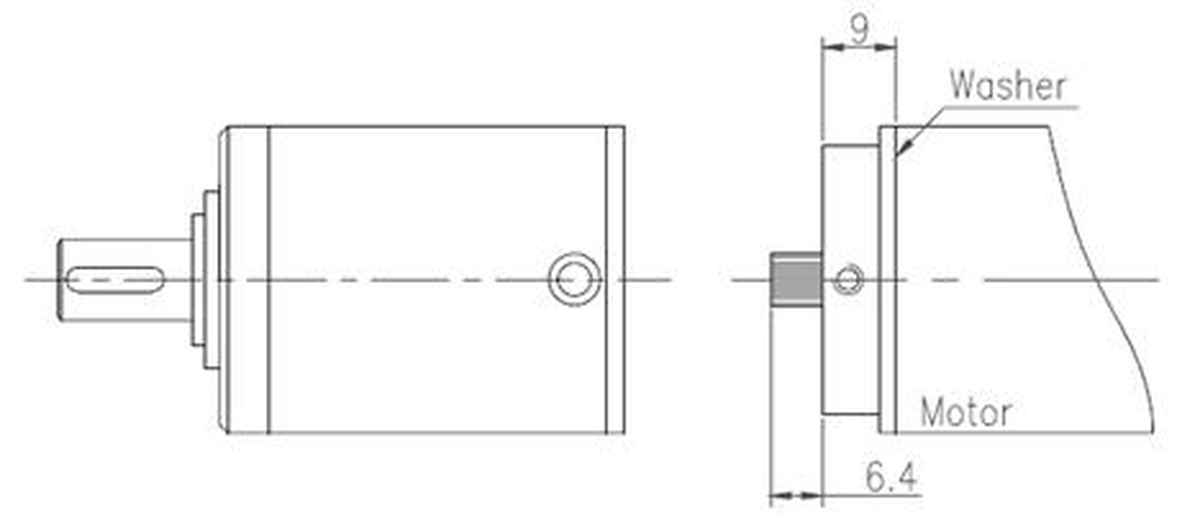

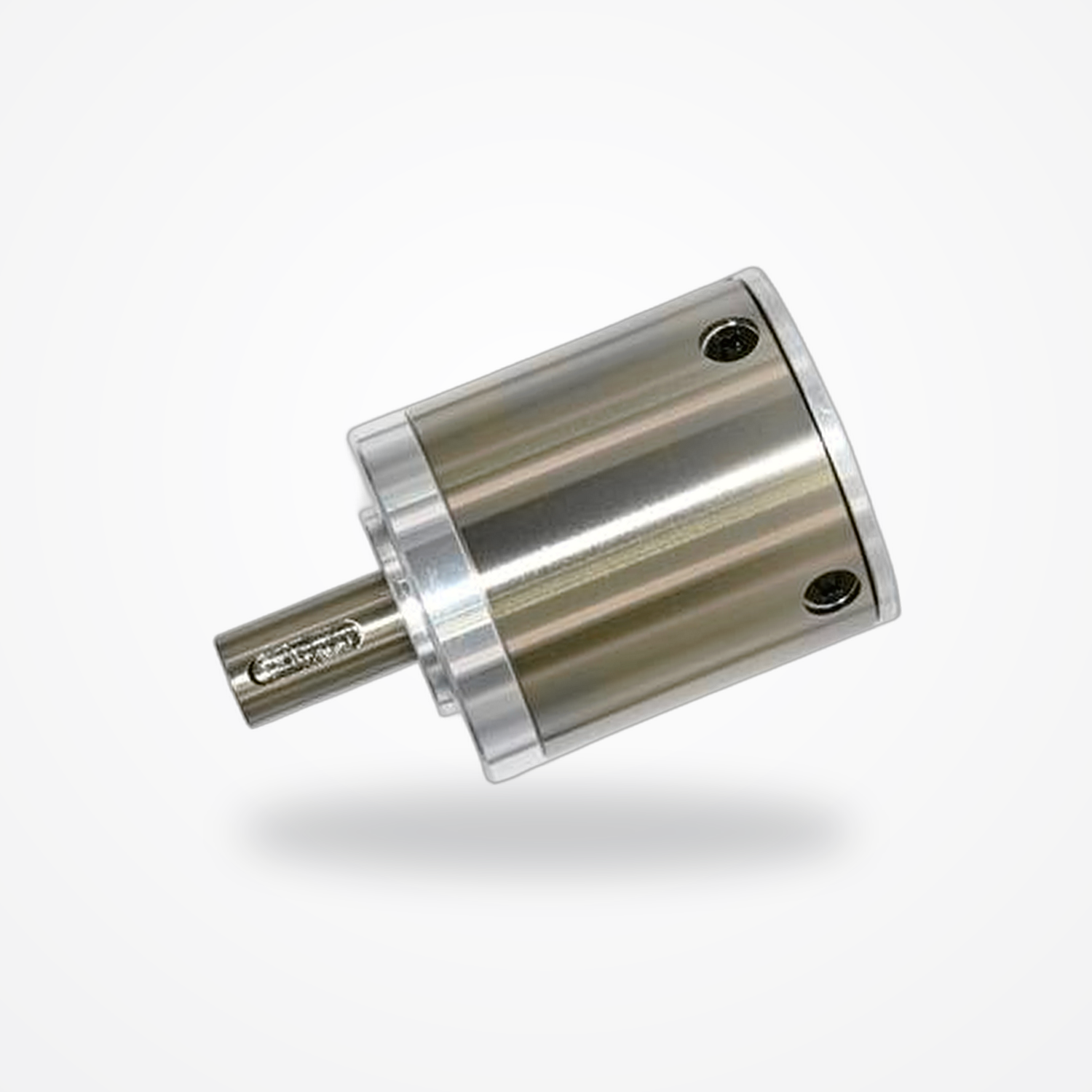

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 3810004 | 1 | 3.71:1 | 1.5 | 90 | 0.6 | 33 | 148 | View SKU |
| 3810005 | 1 | 5.18:1 | 1.5 | 90 | 0.6 | 33 | 148 | View SKU |
| 3810014 | 2 | 13.73:1 | 4 | 81 | 0.8 | 43.4 | 255 | View SKU |
| 3810019 | 2 | 19.20:1 | 4 | 81 | 0.8 | 43.4 | 255 | View SKU |
| 3810027 | 2 | 26.85:1 | 4 | 81 | 0.8 | 43.4 | 255 | View SKU |
| 3810051 | 3 | 50.89:1 | 8 | 73 | 1 | 53.8 | 310 | View SKU |
| 3810071 | 3 | 71.16:1 | 8 | 73 | 1 | 53.8 | 310 | View SKU |
| 3810100 | 3 | 99.51:1 | 8 | 73 | 1 | 53.8 | 310 | View SKU |
| 3810139 | 3 | 139.14:1 | 8 | 73 | 1 | 53.8 | 310 | View SKU |
| 3810181 | 4 | 180.96:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810218 | 4 | 218.12:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810253 | 4 | 253.03:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810305 | 4 | 304.99:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810354 | 4 | 353.80:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810426 | 4 | 426.46:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810495 | 4 | 494.71:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810596 | 4 | 596.31:1 | 10 | 66 | 1.2 | 64.2 | 370 | View SKU |
| 3810808 | 5 | 808.32:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3810938 | 5 | 937.70:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3811130 | 5 | 1130.26:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3811311 | 5 | 1311.16:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3811580 | 5 | 1580.41:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3811833 | 5 | 1833.35:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3812210 | 5 | 2209.84:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3812564 | 5 | 2563.52:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
| 3813090 | 5 | 3089.95:1 | 10 | 59 | 1.2 | 74.5 | 430 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.6 | 11 | 20° | — | 3.16 / 3.98 / 4.48 |
| 0.6 | 17 | 20° | — | 3.16 / 3.98 / 4.48 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load200 N
Max. Permissible Axial Load120 N
Max. Input Speed8000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 38GPC100K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
