42GPC200K
Servo Planetary Gearbox for Coreless Motors · Spur gear
Overview
Outer Diameter42 mm
Rated Output Torque2–20 N·m
Reduction Ratio3.82:1 – 2510:1
Number of Stages1–5
Ring Gear MaterialMetal

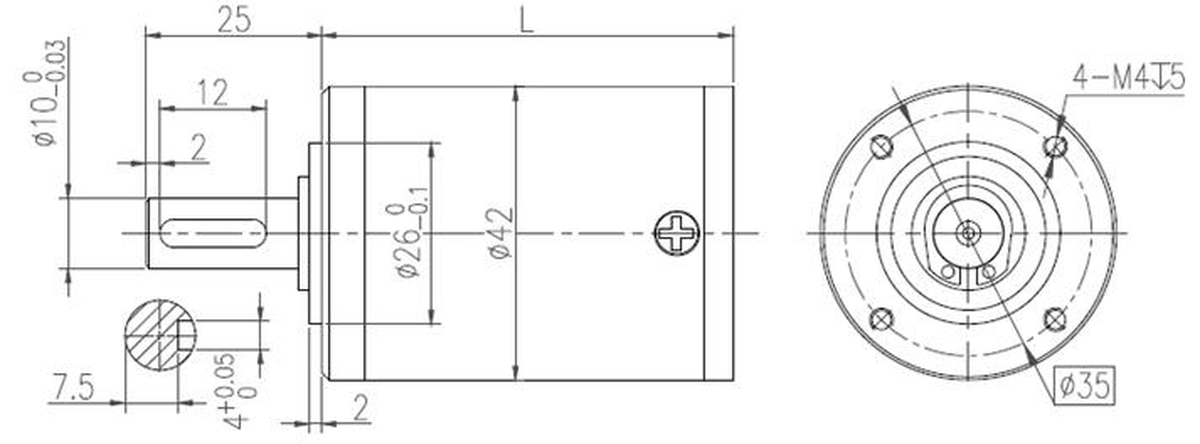

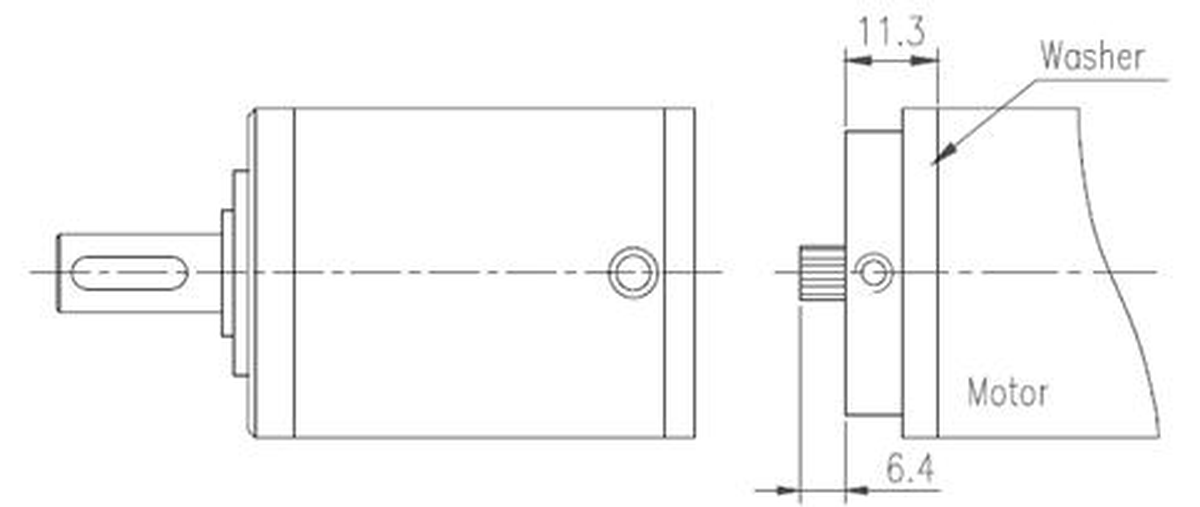

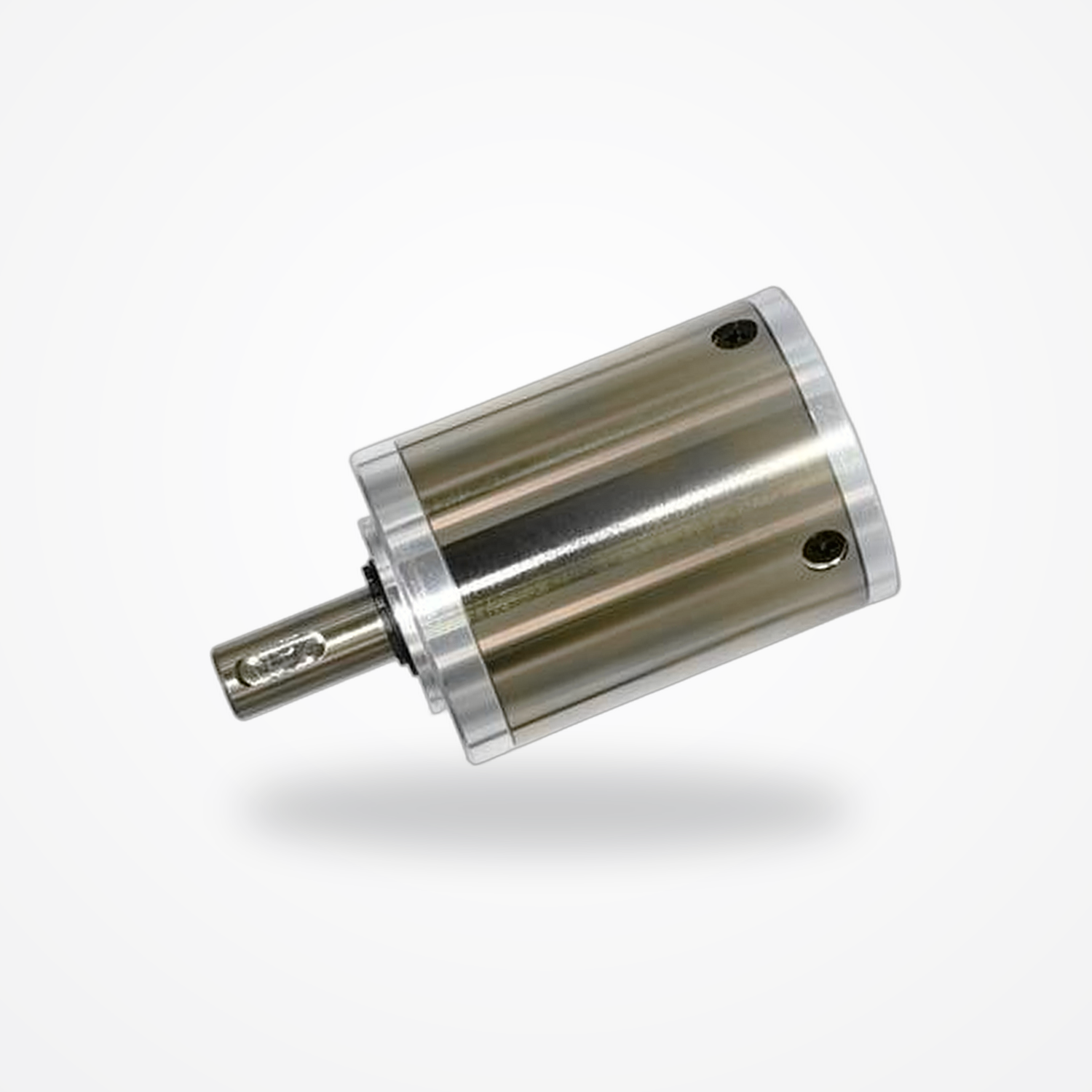

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 4290003 | 1 | 3.8182:1 | 2 | 90 | 0.6 | 37.5 | 145 | View SKU |
| 4290004 | 1 | 4.8750:1 | 2 | 90 | 0.6 | 37.5 | 145 | View SKU |
| 4290005 | 1 | 5.4286:1 | 2 | 90 | 0.6 | 37.5 | 145 | View SKU |
| 4290014 | 2 | 14.11:1 | 8 | 81 | 0.8 | 48 | 280 | View SKU |
| 4290017 | 2 | 16.97:1 | 8 | 81 | 0.8 | 48 | 280 | View SKU |
| 4290022 | 2 | 21.67:1 | 8 | 81 | 0.8 | 48 | 280 | View SKU |
| 4290026 | 2 | 26.46:1 | 8 | 81 | 1 | 48 | 280 | View SKU |
| 4290054 | 3 | 53.88:1 | 16 | 73 | 1 | 58.3 | 412 | View SKU |
| 4290065 | 3 | 64.79:1 | 16 | 73 | 1 | 58.3 | 412 | View SKU |
| 4290083 | 3 | 82.73:1 | 16 | 73 | 1 | 58.3 | 412 | View SKU |
| 4290106 | 3 | 105.62:1 | 16 | 73 | 1.2 | 58.3 | 412 | View SKU |
| 4290129 | 3 | 129.01:1 | 16 | 73 | 1.2 | 58.3 | 412 | View SKU |
| 4290206 | 4 | 205.71:1 | 20 | 66 | 1.2 | 68.6 | 560 | View SKU |
| 4290247 | 4 | 247.39:1 | 20 | 66 | 1.2 | 68.6 | 560 | View SKU |
| 4290316 | 4 | 315.87:1 | 20 | 66 | 1.2 | 68.6 | 560 | View SKU |
| 4290403 | 4 | 403.29:1 | 20 | 66 | 1.2 | 68.6 | 560 | View SKU |
| 4290515 | 4 | 514.92:1 | 20 | 66 | 1.2 | 68.6 | 560 | View SKU |
| 4290785 | 5 | 785.45:1 | 20 | 59 | 1.2 | 78.9 | 710 | View SKU |
| 4290945 | 5 | 944.59:1 | 20 | 59 | 1.2 | 78.9 | 710 | View SKU |
| 4291206 | 5 | 1206.04:1 | 20 | 59 | 1.2 | 78.9 | 710 | View SKU |
| 4291540 | 5 | 1539.86:1 | 20 | 59 | 1.2 | 78.9 | 710 | View SKU |
| 4291966 | 5 | 1966.07:1 | 20 | 59 | 1.2 | 78.9 | 710 | View SKU |
| 4292510 | 5 | 2510.24:1 | 20 | 59 | 1.2 | 78.9 | 710 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.5 | 14 | 20° | — | 4.48 |
| 0.5 | 16 | 20° | — | 4.98 |
| 0.5 | 18 | 20° | — | 4.98 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load200 N
Max. Permissible Axial Load120 N
Max. Input Speed8000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 42GPC200K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
