42JMG50K
Precision Planetary Gearbox · Spur gear
Overview
Outer Diameter42 mm
Rated Output Torque0.5–5 N·m
Reduction Ratio3.82:1 – 565:1
Number of Stages1–4
Ring Gear MaterialMetal

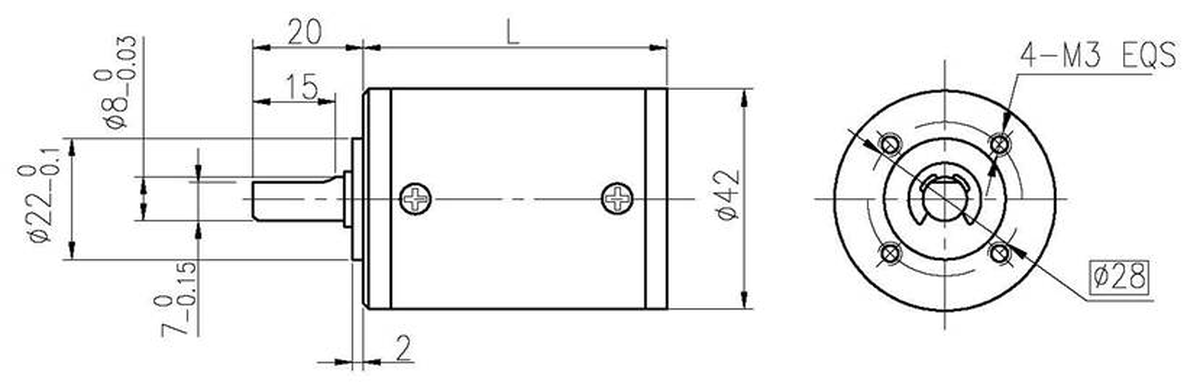

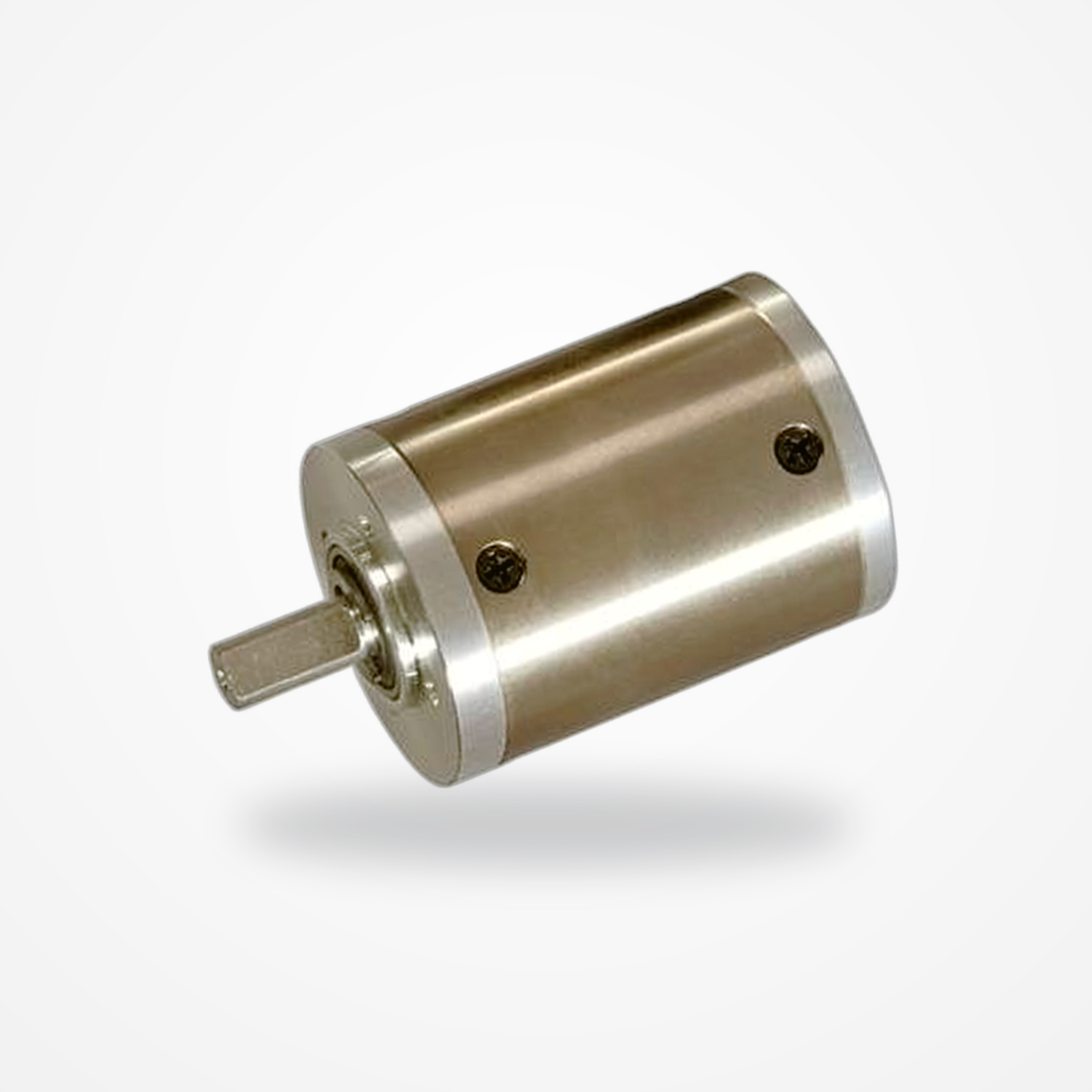

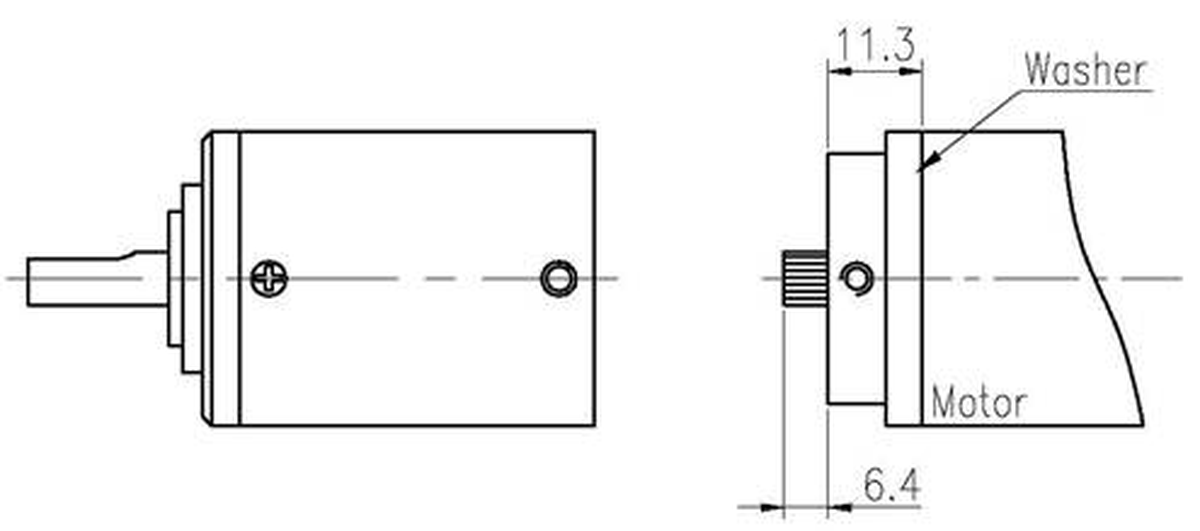

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 4210003 | 1 | 3.8182:1 | 0.5 | 90 | 0.8 | 35.2 | 184 | View SKU |
| 4210004 | 1 | 4.8750:1 | 0.5 | 90 | 0.8 | 35.2 | 184 | View SKU |
| 4210015 | 2 | 14.58:1 | 2 | 81 | 1.2 | 45.7 | 251 | View SKU |
| 4210019 | 2 | 18.61:1 | 2 | 81 | 1.2 | 45.7 | 251 | View SKU |
| 4210024 | 2 | 23.77:1 | 2 | 81 | 1.2 | 45.7 | 251 | View SKU |
| 4210056 | 3 | 55.66:1 | 4 | 73 | 1.5 | 56 | 320 | View SKU |
| 4210071 | 3 | 71.07:1 | 4 | 73 | 1.5 | 56 | 320 | View SKU |
| 4210091 | 3 | 90.74:1 | 4 | 73 | 1.5 | 56 | 320 | View SKU |
| 4210116 | 3 | 115.86:1 | 4 | 73 | 1.5 | 56 | 320 | View SKU |
| 4210213 | 4 | 212.53:1 | 5 | 66 | 2 | 66.3 | 388 | View SKU |
| 4210271 | 4 | 271.36:1 | 5 | 66 | 2 | 66.3 | 388 | View SKU |
| 4210346 | 4 | 346.47:1 | 5 | 66 | 2 | 66.3 | 388 | View SKU |
| 4210442 | 4 | 442.36:1 | 5 | 66 | 2 | 66.3 | 388 | View SKU |
| 4210565 | 4 | 564.80:1 | 5 | 66 | 2 | 66.3 | 388 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.5 | 16 | 20° | — | 3.98 / 4.48 / 4.98 |
| 0.5 | 22 | 20° | — | 3.98 / 4.48 / 4.98 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load100 N
Max. Permissible Axial Load50 N
Max. Input Speed8000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 42JMG50K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
