42JXF100K

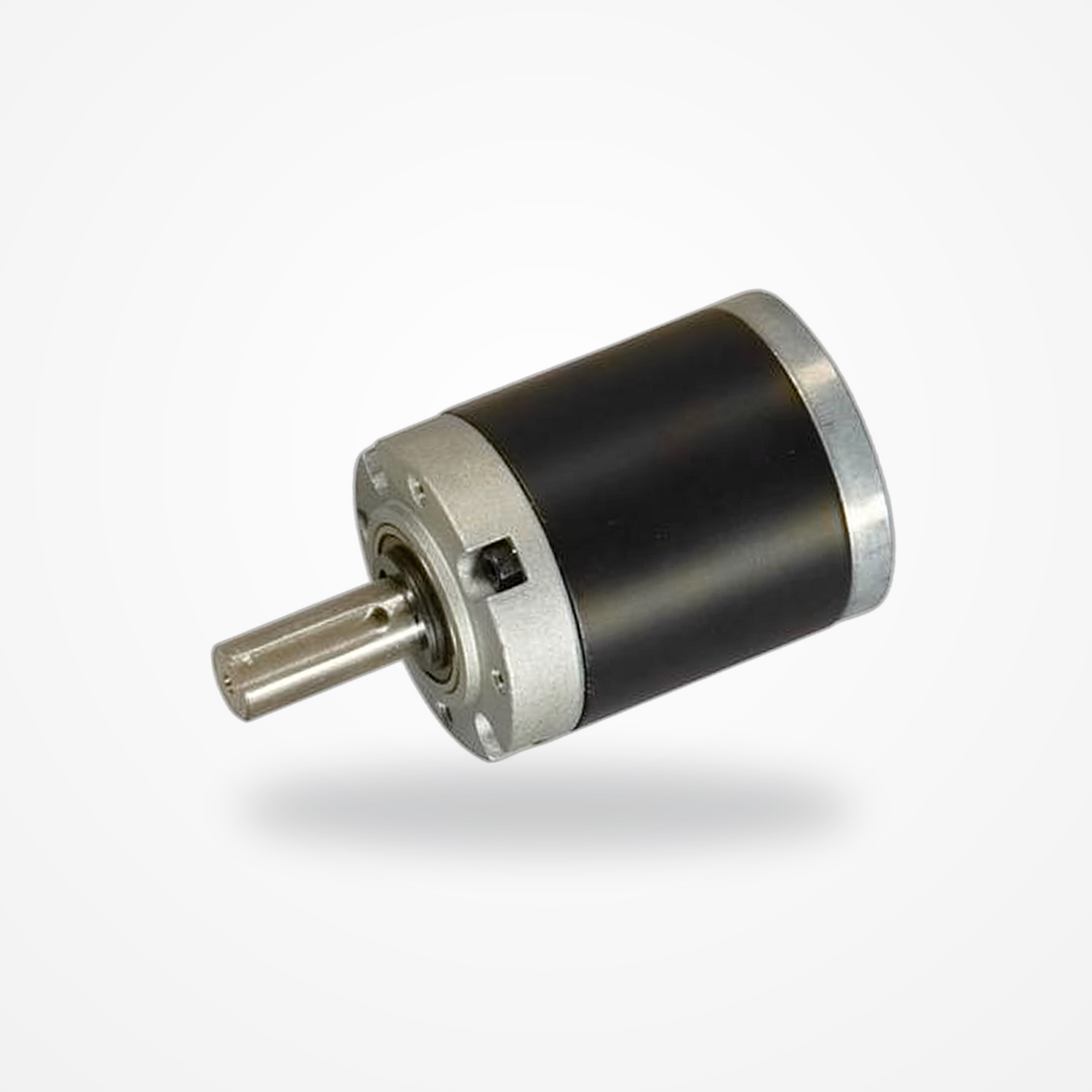

Standard Planetary Gearbox · Spur gear
Overview
Outer Diameter42 mm
Rated Output Torque1–10 N·m
Reduction Ratio3.71:1 – 596:1
Number of Stages1–4
Ring Gear MaterialSintered Powder Metal

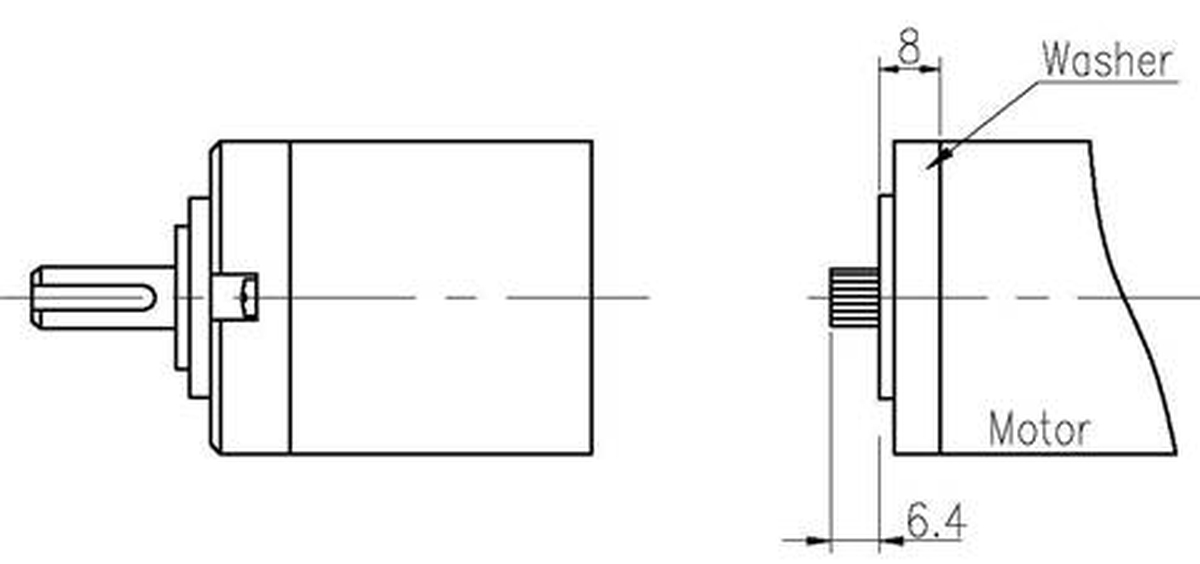

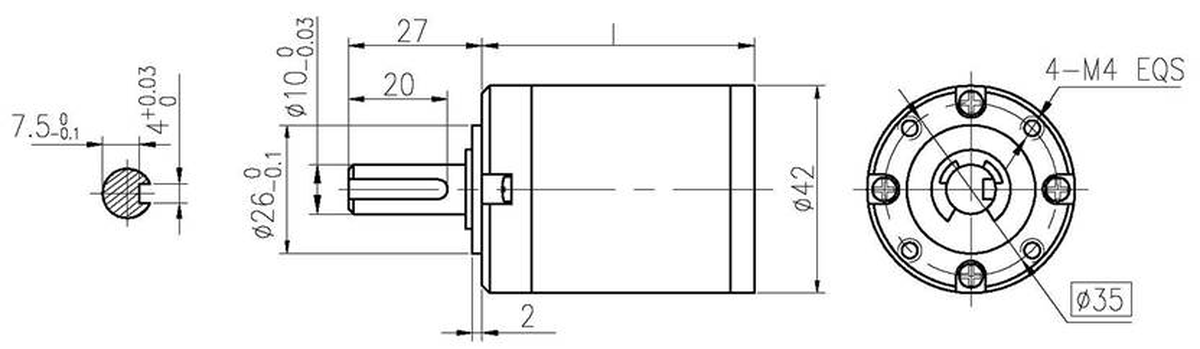

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 4280004 | 1 | 3.7059:1 | 1 | 90 | 1.5 | 31.5 | 244 | View SKU |
| 4280005 | 1 | 5.1818:1 | 1 | 90 | 1.5 | 31.5 | 244 | View SKU |
| 4280014 | 2 | 13.73:1 | 4 | 81 | 1.8 | 42.1 | 314 | View SKU |
| 4280019 | 2 | 19.20:1 | 4 | 81 | 1.8 | 42.1 | 314 | View SKU |
| 4280027 | 2 | 26.85:1 | 4 | 81 | 1.8 | 42.1 | 314 | View SKU |
| 4280051 | 3 | 50.89:1 | 8 | 73 | 2 | 52.5 | 433 | View SKU |
| 4280071 | 3 | 71.16:1 | 8 | 73 | 2 | 52.5 | 433 | View SKU |
| 4280100 | 3 | 99.51:1 | 8 | 73 | 2 | 52.5 | 433 | View SKU |
| 4280139 | 3 | 139.14:1 | 8 | 73 | 2 | 52.5 | 433 | View SKU |
| 4280181 | 4 | 180.96:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280218 | 4 | 218.12:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280253 | 4 | 253.03:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280305 | 4 | 304.99:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280353 | 4 | 353.81:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280426 | 4 | 426.46:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280495 | 4 | 494.71:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
| 4280596 | 4 | 596.31:1 | 10 | 66 | 2.5 | 62.9 | 519 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.6 | 11 | 20° | — | 3.98 / 4.48 |
| 0.6 | 17 | 20° | — | 3.98 / 4.48 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load200 N
Max. Permissible Axial Load100 N
Max. Input Speed6000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 42JXF100K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
