42JXL150K
Low-Noise Helical Planetary Gearbox · Helical gear
Overview
Outer Diameter42 mm
Rated Output Torque1.5–15 N·m
Reduction Ratio3.71:1 – 596:1
Number of Stages1–4
Ring Gear MaterialSintered Powder Metal

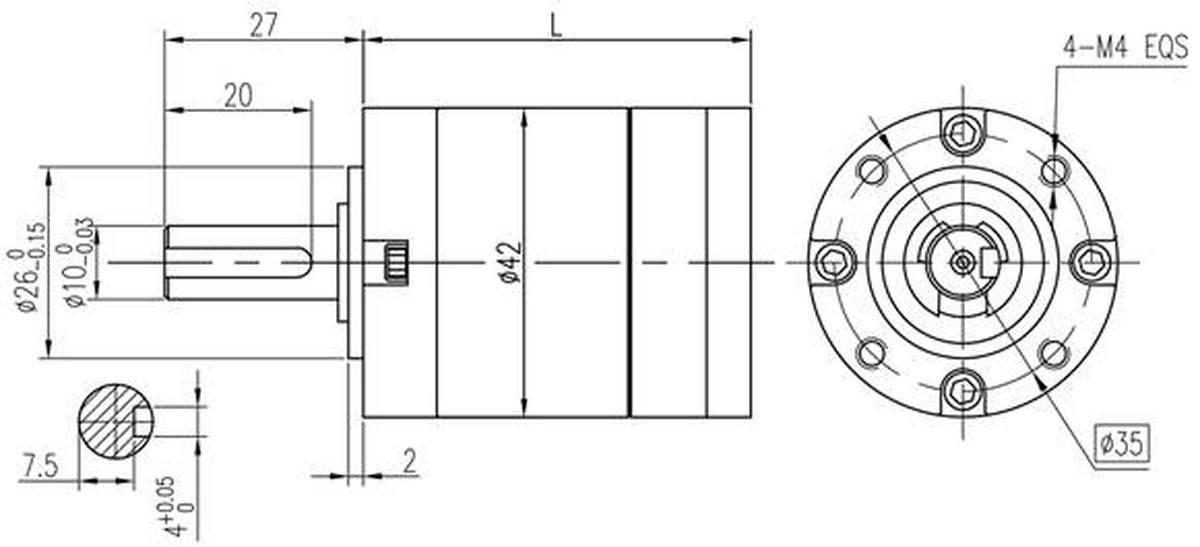

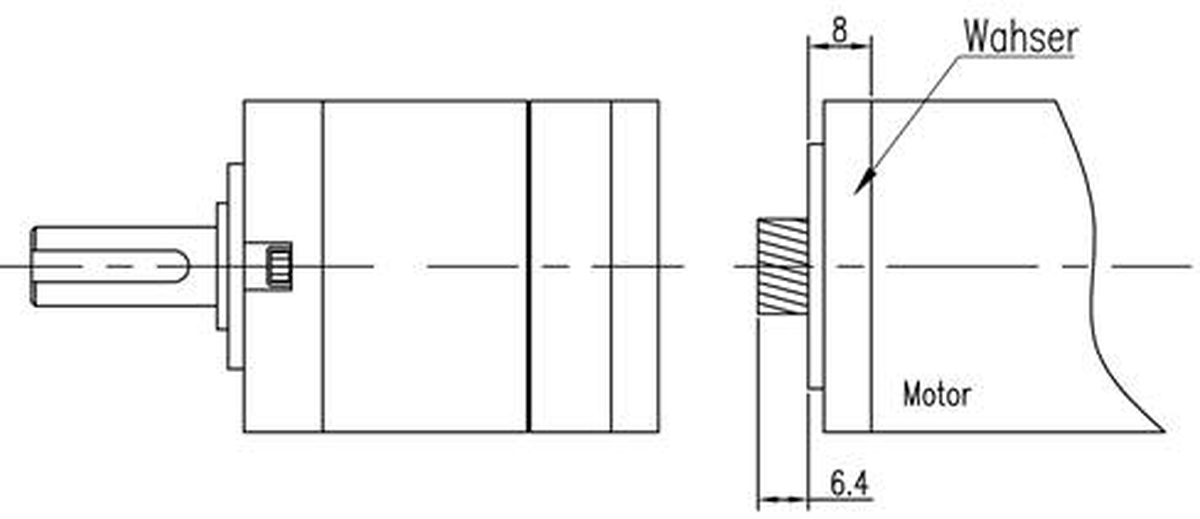

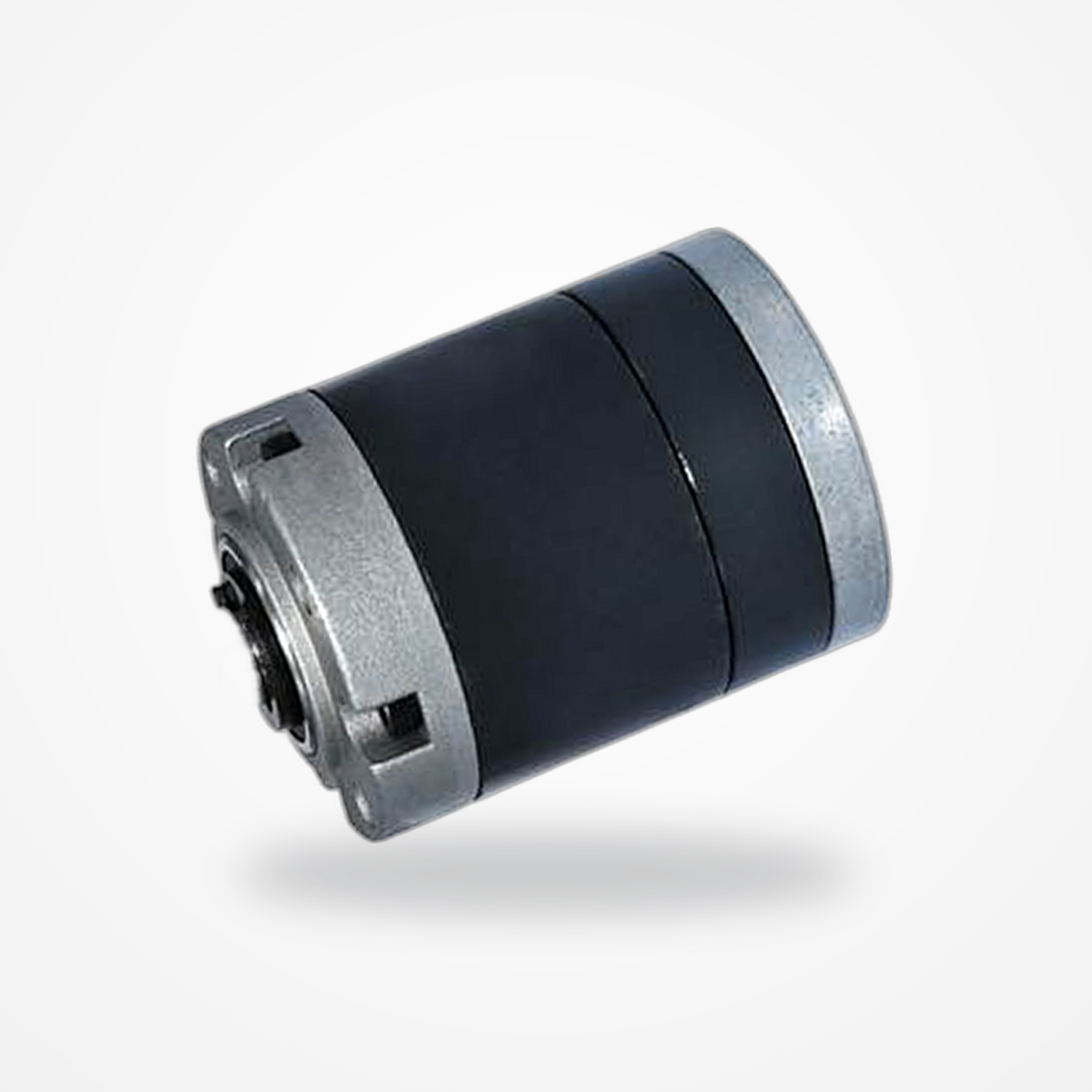

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 4260003 | 1 | 3.7059:1 | 1.5 | 90 | 1.5 | 31.5 | 235 | View SKU |
| 4260005 | 1 | 5.1819:1 | 1.5 | 90 | 1.5 | 31.5 | 235 | View SKU |
| 4260014 | 2 | 13.73:1 | 4 | 81 | 1.8 | 42.1 | 314 | View SKU |
| 4260019 | 2 | 19.20:1 | 4 | 81 | 1.8 | 42.1 | 314 | View SKU |
| 4260027 | 2 | 26.85:1 | 4 | 81 | 1.8 | 42.1 | 314 | View SKU |
| 4260049 | 3 | 48.83:1 | 10 | 73 | 2 | 52.5 | 433 | View SKU |
| 4260059 | 3 | 58.86:1 | 10 | 73 | 2 | 52.5 | 433 | View SKU |
| 4260068 | 3 | 68.28:1 | 10 | 73 | 2 | 52.5 | 433 | View SKU |
| 4260082 | 3 | 82.30:1 | 10 | 73 | 2 | 52.5 | 433 | View SKU |
| 4260095 | 3 | 95.47:1 | 10 | 73 | 2 | 52.5 | 433 | View SKU |
| 4260115 | 3 | 115.08:1 | 10 | 73 | 2 | 52.5 | 433 | View SKU |
| 4260181 | 4 | 180.96:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260218 | 4 | 218.12:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260253 | 4 | 253.03:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260305 | 4 | 304.99:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260354 | 4 | 353.81:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260426 | 4 | 426.46:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260495 | 4 | 494.71:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
| 4260596 | 4 | 596.31:1 | 15 | 66 | 2.5 | 62.9 | 520 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.6 | 11 | 20° | 17° | 3.98 |
| 0.6 | 17 | 20° | 17° | 3.98 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load200 N
Max. Permissible Axial Load100 N
Max. Input Speed5000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 42JXL150K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
