56GPC300K
Servo Planetary Gearbox for Coreless Motors · Spur gear
Overview
Outer Diameter56 mm
Rated Output Torque4–30 N·m
Reduction Ratio4.5:1 – 1953:1
Number of Stages1–4
Ring Gear MaterialMetal

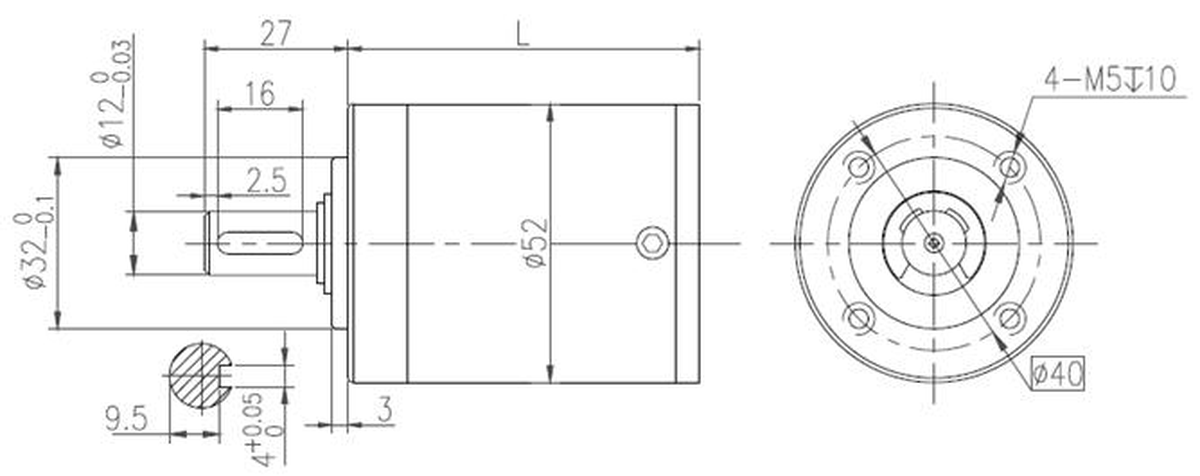

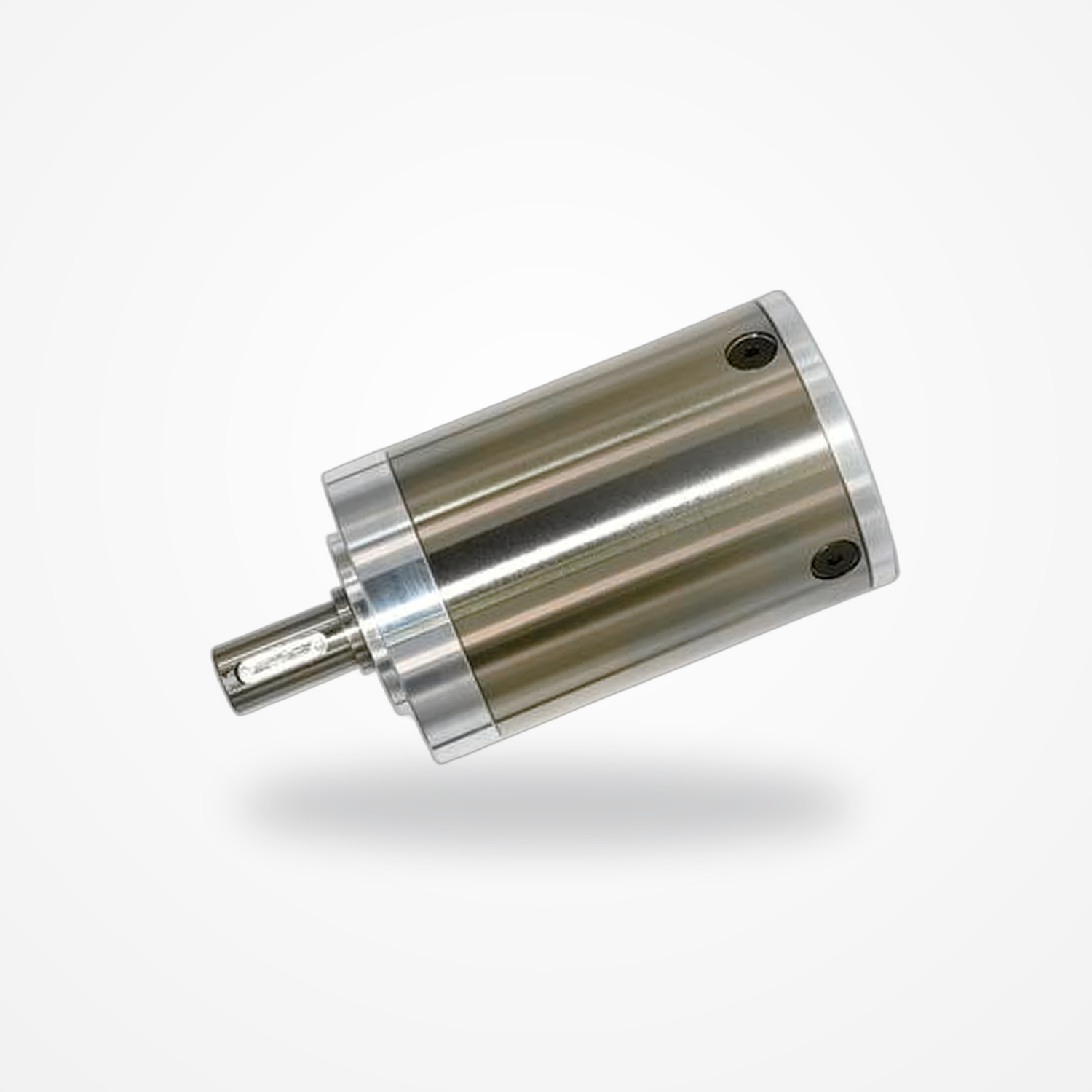

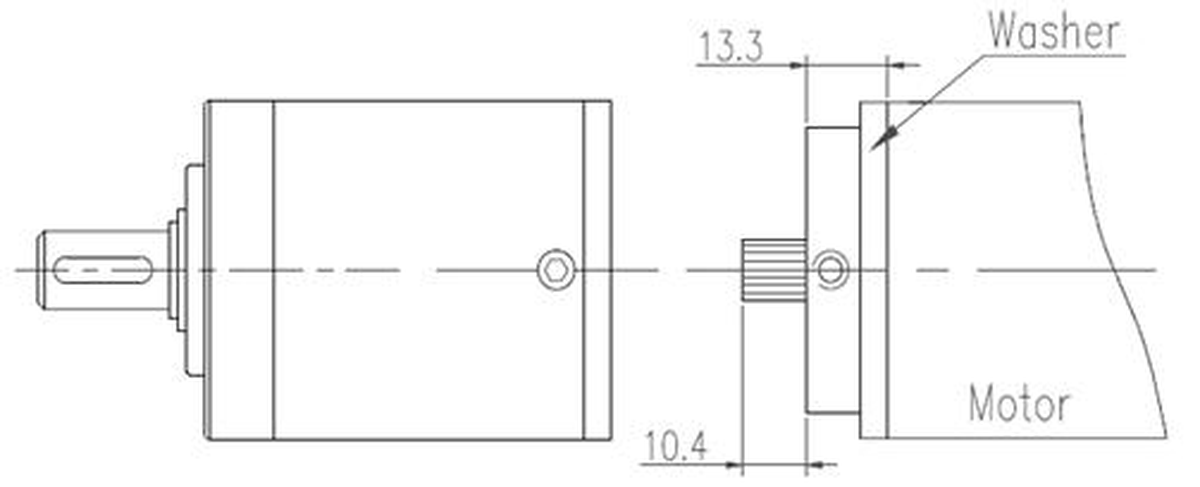

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 5690004 | 1 | 4.50:1 | 4 | 90 | 0.6 | 50.6 | 265 | View SKU |
| 5690006 | 1 | 6.25:1 | 4 | 90 | 0.6 | 50.6 | 265 | View SKU |
| 5690008 | 1 | 8.00:1 | 4 | 90 | 0.6 | 50.6 | 265 | View SKU |
| 5690020 | 2 | 20.25:1 | 15 | 81 | 0.8 | 66 | 540 | View SKU |
| 5690028 | 2 | 28.35:1 | 15 | 81 | 0.8 | 66 | 540 | View SKU |
| 5690036 | 2 | 36.00:1 | 15 | 81 | 0.8 | 66 | 540 | View SKU |
| 5690050 | 2 | 50.00:1 | 15 | 81 | 0.8 | 66 | 540 | View SKU |
| 5690064 | 2 | 64.00:1 | 15 | 81 | 0.8 | 66 | 540 | View SKU |
| 5690091 | 3 | 91.13:1 | 30 | 73 | 1 | 81.4 | 765 | View SKU |
| 5690127 | 3 | 126.56:1 | 30 | 73 | 1 | 81.4 | 765 | View SKU |
| 5690162 | 3 | 162.00:1 | 30 | 73 | 1 | 81.4 | 765 | View SKU |
| 5690225 | 3 | 225.00:1 | 30 | 73 | 1 | 81.4 | 765 | View SKU |
| 5690313 | 3 | 312.50:1 | 30 | 73 | 1 | 81.4 | 765 | View SKU |
| 5690400 | 3 | 400.00:1 | 30 | 73 | 1 | 81.4 | 765 | View SKU |
| 5690570 | 4 | 569.53:1 | 30 | 65 | 1 | 96.7 | 920 | View SKU |
| 5690791 | 4 | 791.02:1 | 30 | 65 | 1 | 96.7 | 920 | View SKU |
| 5691099 | 4 | 1098.63:1 | 30 | 65 | 1 | 96.7 | 920 | View SKU |
| 5691526 | 4 | 1525.88:1 | 30 | 65 | 1 | 96.7 | 920 | View SKU |
| 5691953 | 4 | 1953.13:1 | 30 | 65 | 1 | 96.7 | 920 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.7 | 9 | 20° | — | |
| 0.7 | 12 | 20° | — | 6 |
| 0.7 | 18 | 20° | — | 6 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load400 N
Max. Permissible Axial Load200 N
Max. Input Speed6000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 56GPC300K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
