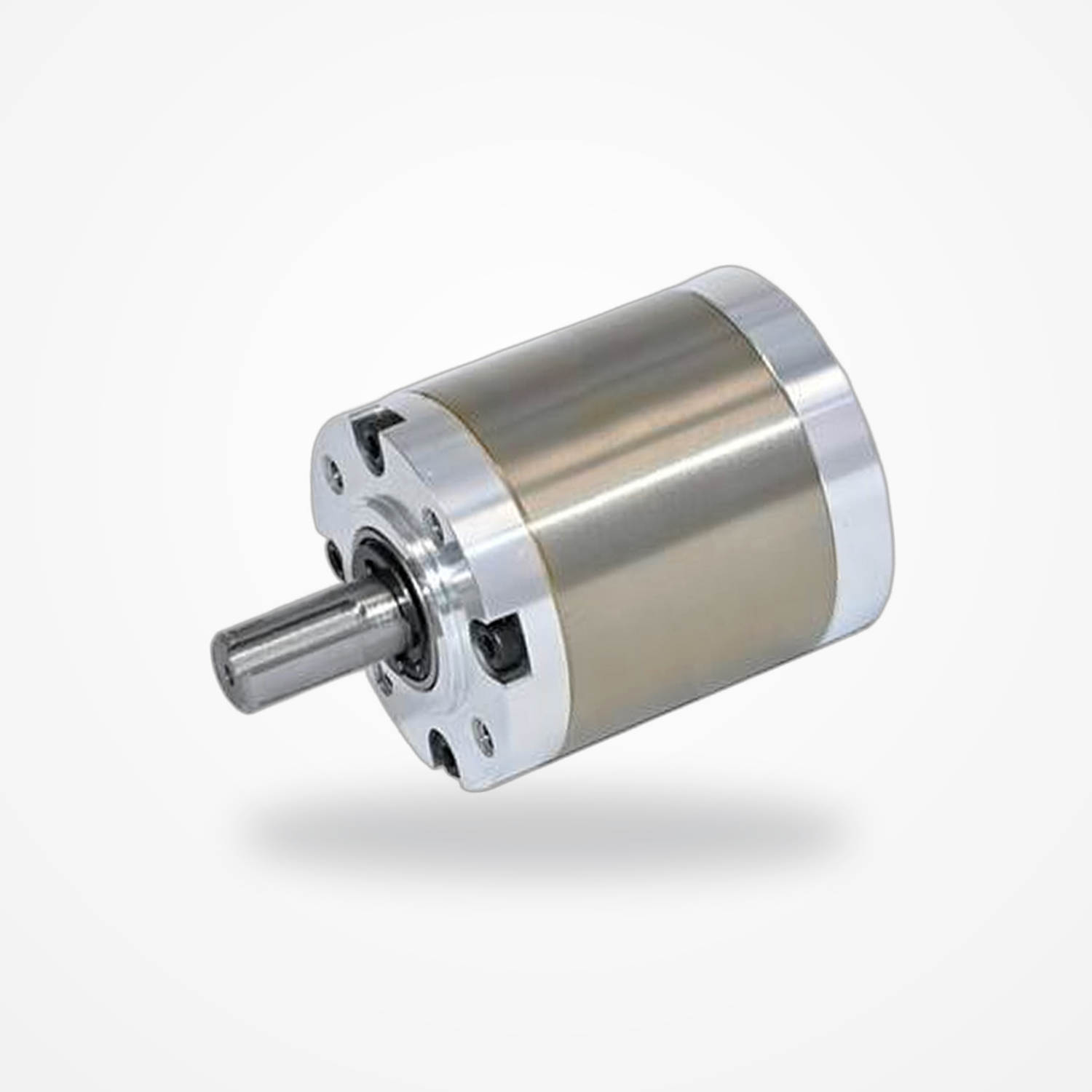

56JM300K
Precision Planetary Gearbox · Spur gear
Overview
Outer Diameter56 mm
Rated Output Torque3–30 N·m
Reduction Ratio3.6:1 – 1305:1
Number of Stages1–5
Ring Gear MaterialMetal

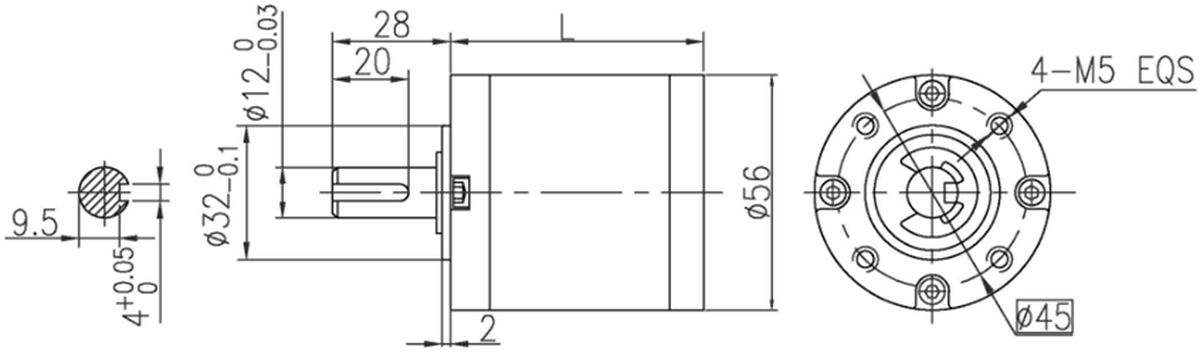

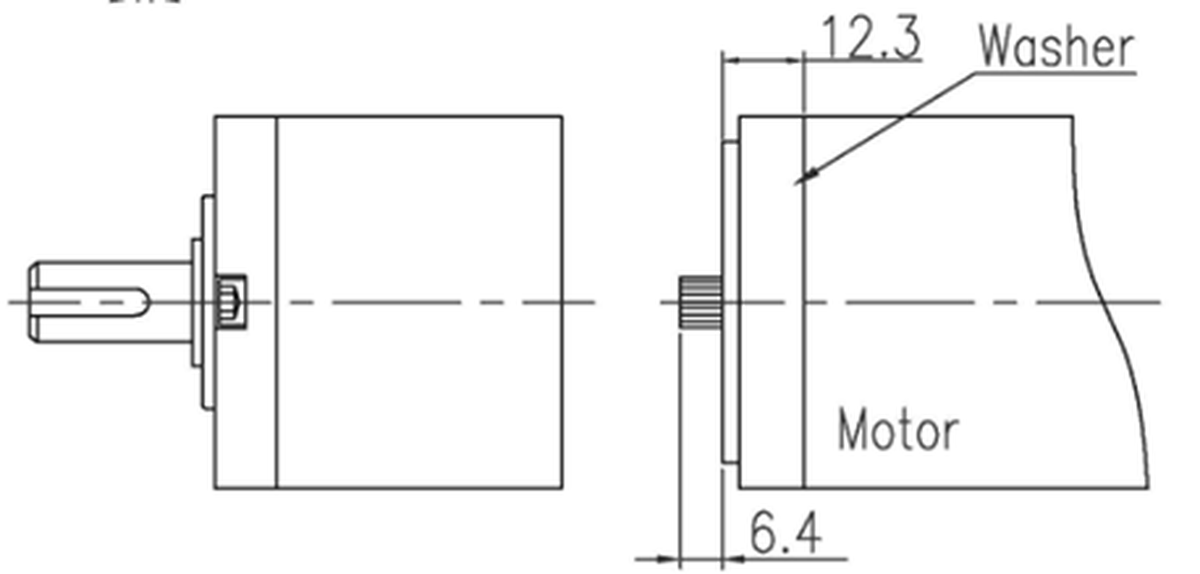

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 5610003 | 1 | 3.6000:1 | 3 | 90 | 0.8 | 37.8 | 489 | View SKU |
| 5610004 | 1 | 4.2500:1 | 3 | 90 | 0.8 | 37.8 | 489 | View SKU |
| 5610005 | 1 | 5.3333:1 | 3 | 90 | 0.8 | 37.8 | 489 | View SKU |
| 5610013 | 2 | 12.96:1 | 12 | 81 | 1.2 | 49.5 | 681 | View SKU |
| 5610015 | 2 | 15.30:1 | 12 | 81 | 1.2 | 49.5 | 681 | View SKU |
| 5610018 | 2 | 18.06:1 | 12 | 81 | 1.2 | 49.5 | 681 | View SKU |
| 5610023 | 2 | 22.67:1 | 12 | 81 | 1.2 | 49.5 | 681 | View SKU |
| 5610028 | 2 | 28.44:1 | 12 | 81 | 1.2 | 49.5 | 681 | View SKU |
| 5610047 | 3 | 46.66:1 | 24 | 73 | 1.5 | 60.8 | 871 | View SKU |
| 5610055 | 3 | 55.08:1 | 24 | 73 | 1.5 | 60.8 | 871 | View SKU |
| 5610065 | 3 | 65.03:1 | 24 | 73 | 1.5 | 60.8 | 871 | View SKU |
| 5610077 | 3 | 76.77:1 | 24 | 73 | 1.5 | 60.8 | 871 | View SKU |
| 5610096 | 3 | 96.33:1 | 24 | 73 | 1.5 | 60.8 | 871 | View SKU |
| 5610121 | 3 | 120.89:1 | 24 | 73 | 1.5 | 60.8 | 871 | View SKU |
| 5610154 | 4 | 153.69:1 | 30 | 66 | 2 | 71.9 | 1066 | View SKU |
| 5610187 | 4 | 186.62:1 | 30 | 66 | 2 | 71.9 | 1066 | View SKU |
| 5610220 | 4 | 220.32:1 | 30 | 66 | 2 | 71.9 | 1066 | View SKU |
| 5610260 | 4 | 260.10:1 | 30 | 66 | 2 | 71.9 | 1066 | View SKU |
| 5610307 | 4 | 307.06:1 | 30 | 66 | 2 | 71.9 | 1066 | View SKU |
| 5610553 | 5 | 553.29:1 | 30 | 59 | 2 | 80.8 | 1230 | View SKU |
| 5610672 | 5 | 671.85:1 | 30 | 59 | 2 | 80.8 | 1230 | View SKU |
| 5610793 | 5 | 793.15:1 | 30 | 59 | 2 | 80.8 | 1230 | View SKU |
| 5611105 | 5 | 1105.43:1 | 30 | 59 | 2 | 80.8 | 1230 | View SKU |
| 5611305 | 5 | 1305.02:1 | 30 | 59 | 2 | 80.8 | 1230 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 1 | 9 | 20° | — | 4 |
| 1 | 12 | 20° | — | 6 |
| 1 | 13 | 20° | — | 6 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load300 N
Max. Permissible Axial Load200 N
Max. Input Speed6000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 56JM300K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
