56PMCG300K
Standard Planetary Gearbox · Spur gear
Overview
Outer Diameter56 mm
Rated Output Torque3–30 N·m
Reduction Ratio4.5:1 – 400:1
Number of Stages1–3
Ring Gear MaterialMetal

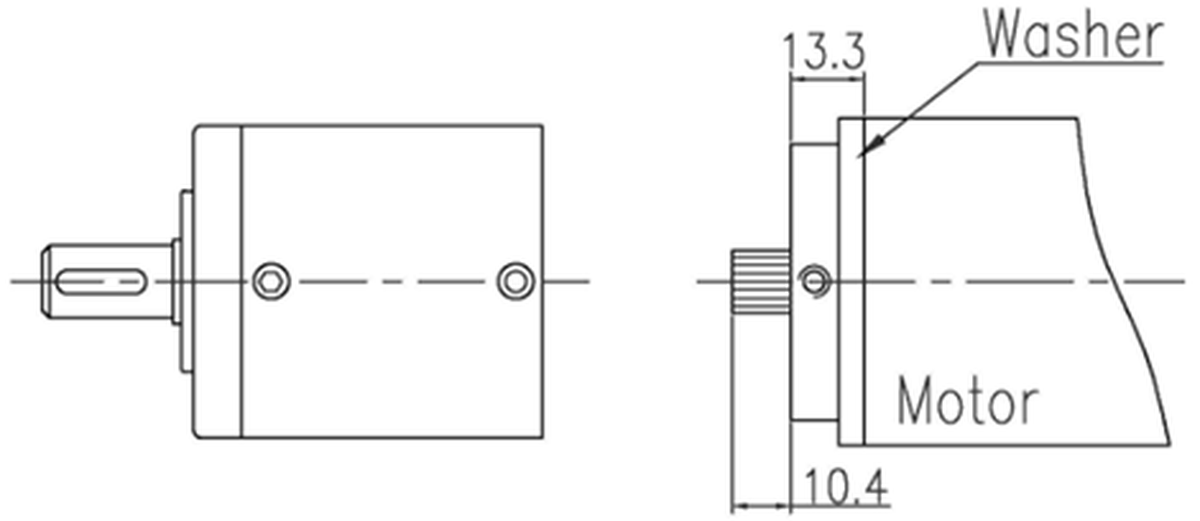

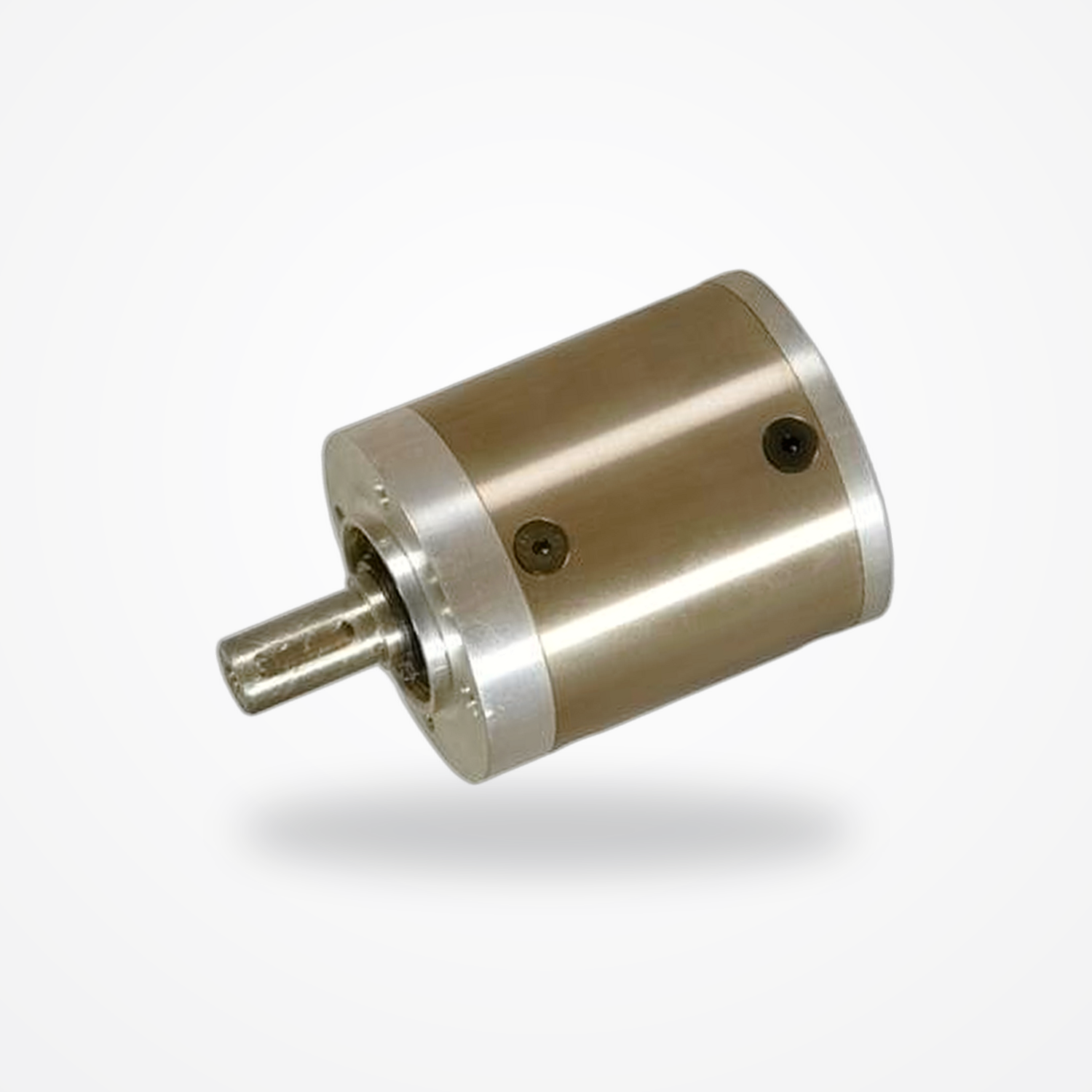

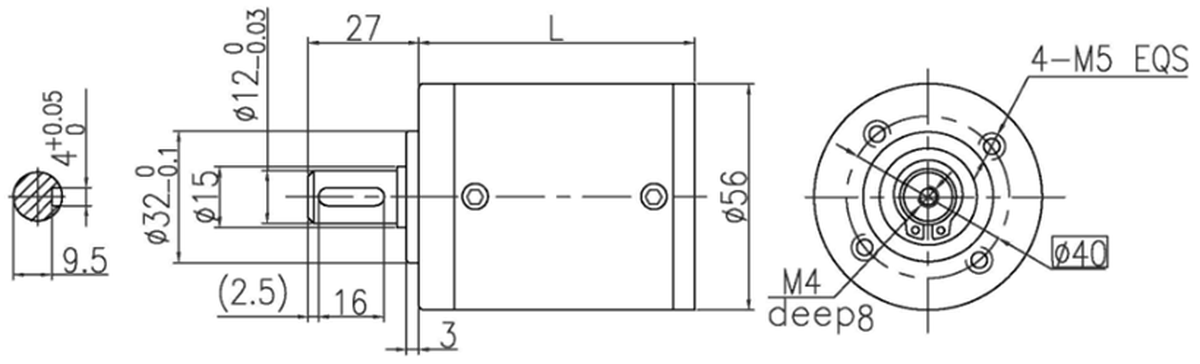

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 5660004 | 1 | 9/2 | 4 | 90 | 0.6 | 50.6 | 550 | View SKU |
| 5660006 | 1 | 6.25:1 ? | 4 | 90 | 0.6 | 50.6 | 550 | View SKU |
| 5660008 | 1 | 8/1 | 4 | 90 | 0.6 | 50.6 | 550 | View SKU |
| 5660020 | 2 | 81/4 | 15 | 81 | 0.8 | 66 | 720 | View SKU |
| 5660028 | 2 | 225/8 | 15 | 81 | 0.8 | 66 | 720 | View SKU |
| 5660036 | 2 | 36/1 | 15 | 81 | 0.8 | 66 | 720 | View SKU |
| 5660050 | 2 | 50/1 | 15 | 81 | 0.8 | 66 | 720 | View SKU |
| 5660064 | 2 | 64/1 | 15 | 81 | 0.8 | 66 | 720 | View SKU |
| 5660091 | 3 | 729/8 | 30 | 73 | 1 | 81.4 | 930 | View SKU |
| 5660127 | 3 | 2025/16 | 30 | 73 | 1 | 81.4 | 930 | View SKU |
| 5660162 | 3 | 162/1 | 30 | 73 | 1 | 81.4 | 930 | View SKU |
| 5660225 | 3 | 225/1 | 30 | 73 | 1 | 81.4 | 930 | View SKU |
| 5660313 | 3 | 625/2 | 30 | 73 | 1 | 81.4 | 930 | View SKU |
| 5660400 | 3 | 400/1 | 30 | 73 | 1 | 81.4 | 930 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.7 | 9 | 20° | — | |
| 0.7 | 12 | 20° | — | 6 |
| 0.7 | 18 | 20° | — | 6 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load300 N
Max. Permissible Axial Load200 N
Max. Input Speed5000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 56PMCG300K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
