60JXE300K
Standard Planetary Gearbox · Spur gear
Overview
Outer Diameter60 mm
Rated Output Torque3–30 N·m
Reduction Ratio3.6:1 – 307:1
Number of Stages1–4
Ring Gear MaterialMetal

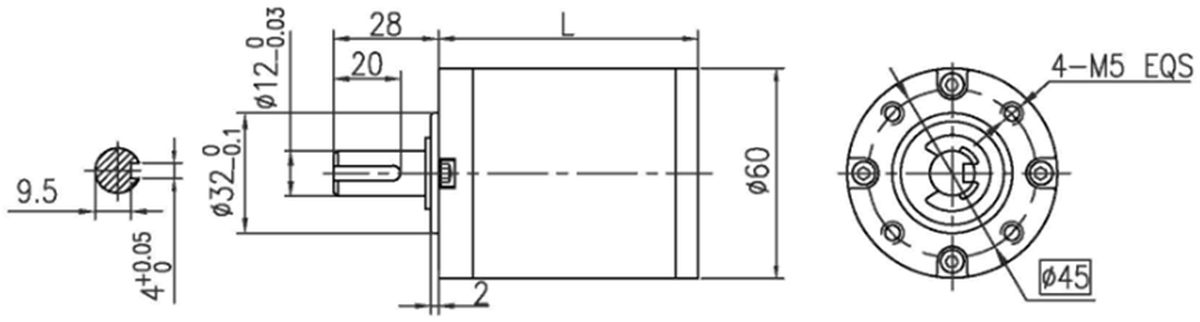

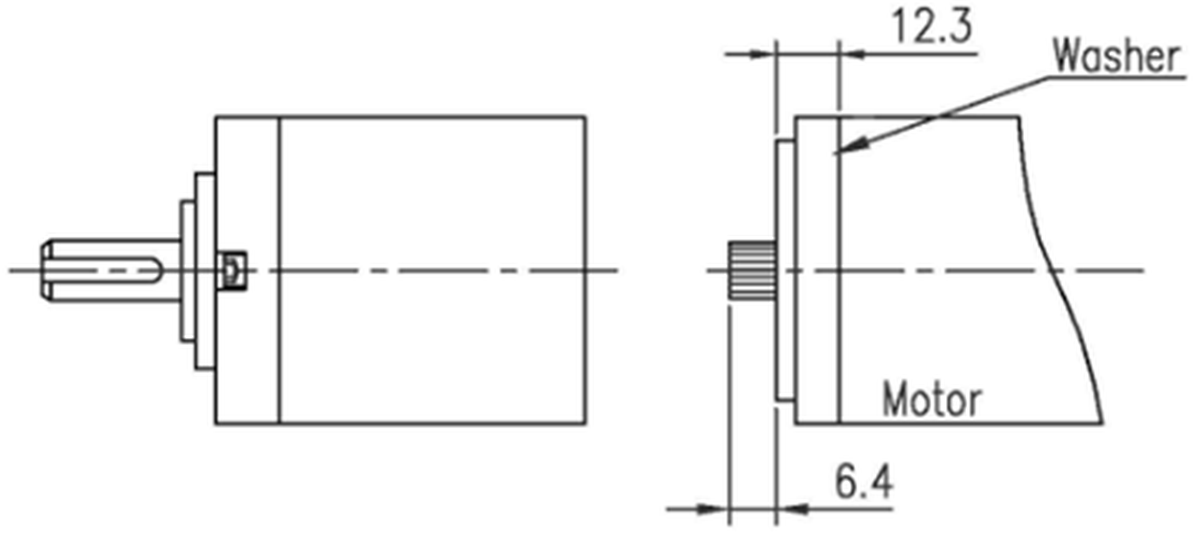

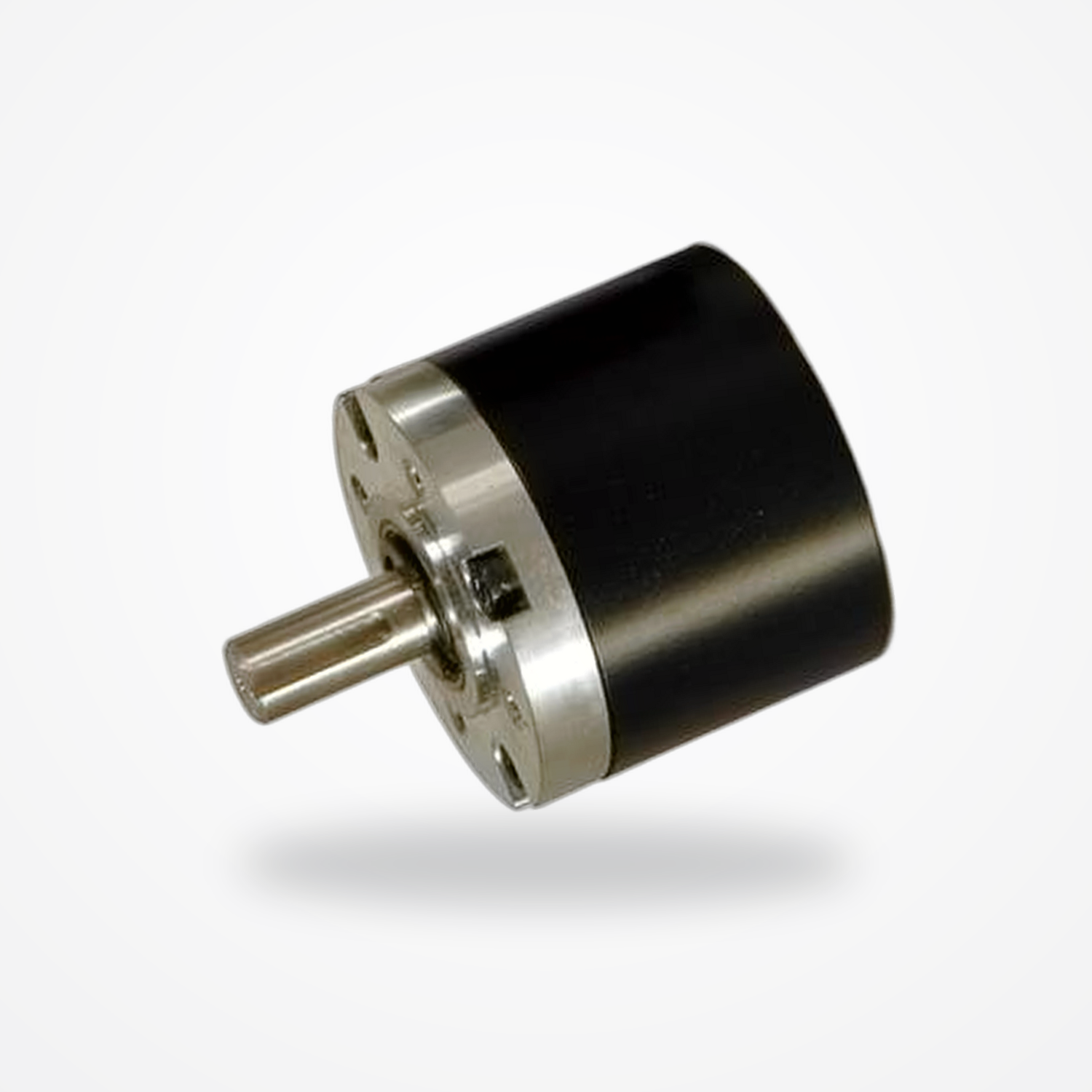

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 6050003 | 1 | 3.6000:1 | 3 | 90 | 1.5 | 37.8 | 540 | View SKU |
| 6050004 | 1 | 4.2500:1 | 3 | 90 | 1.5 | 37.8 | 540 | View SKU |
| 6050005 | 1 | 5.3333:1 | 3 | 90 | 1.5 | 37.8 | 540 | View SKU |
| 6050013 | 2 | 12.96:1 | 12 | 81 | 1.8 | 49.5 | 750 | View SKU |
| 6050015 | 2 | 15.30:1 | 12 | 81 | 1.8 | 49.5 | 750 | View SKU |
| 6050018 | 2 | 18.06:1 | 12 | 81 | 1.8 | 49.5 | 750 | View SKU |
| 6050023 | 2 | 22.67:1 | 12 | 81 | 1.8 | 49.5 | 750 | View SKU |
| 6050028 | 2 | 28.44:1 | 12 | 81 | 1.8 | 49.5 | 750 | View SKU |
| 6050047 | 3 | 46.66:1 | 24 | 73 | 2 | 60.8 | 960 | View SKU |
| 6050055 | 3 | 55.08:1 | 24 | 73 | 2 | 60.8 | 960 | View SKU |
| 6050065 | 3 | 65.03:1 | 24 | 73 | 2 | 60.8 | 960 | View SKU |
| 6050077 | 3 | 76.77:1 | 24 | 73 | 2 | 60.8 | 960 | View SKU |
| 6050096 | 3 | 96.33:1 | 24 | 73 | 2 | 60.8 | 960 | View SKU |
| 6050121 | 3 | 120.89:1 | 24 | 73 | 2 | 60.8 | 960 | View SKU |
| 6050154 | 4 | 153.69:1 | 30 | 66 | 2.5 | 71.9 | 1170 | View SKU |
| 6050187 | 4 | 186.62:1 | 30 | 66 | 2.5 | 71.9 | 1170 | View SKU |
| 6050220 | 4 | 220.32:1 | 30 | 66 | 2.5 | 71.9 | 1170 | View SKU |
| 6050260 | 4 | 260.10:1 | 30 | 66 | 2.5 | 71.9 | 1170 | View SKU |
| 6050307 | 4 | 307.06:1 | 30 | 66 | 2.5 | 71.9 | 1170 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 1 | 9 | 20° | — | 4 |
| 1 | 12 | 20° | — | 6 |
| 1 | 13 | 20° | — | 6 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load300 N
Max. Permissible Axial Load200 N
Max. Input Speed5000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
