60JXE450K
Standard Planetary Gearbox · Spur gear
Overview
Outer Diameter60 mm
Rated Output Torque4–45 N·m
Reduction Ratio3.6:1 – 307:1
Number of Stages1–4
Ring Gear MaterialMetal

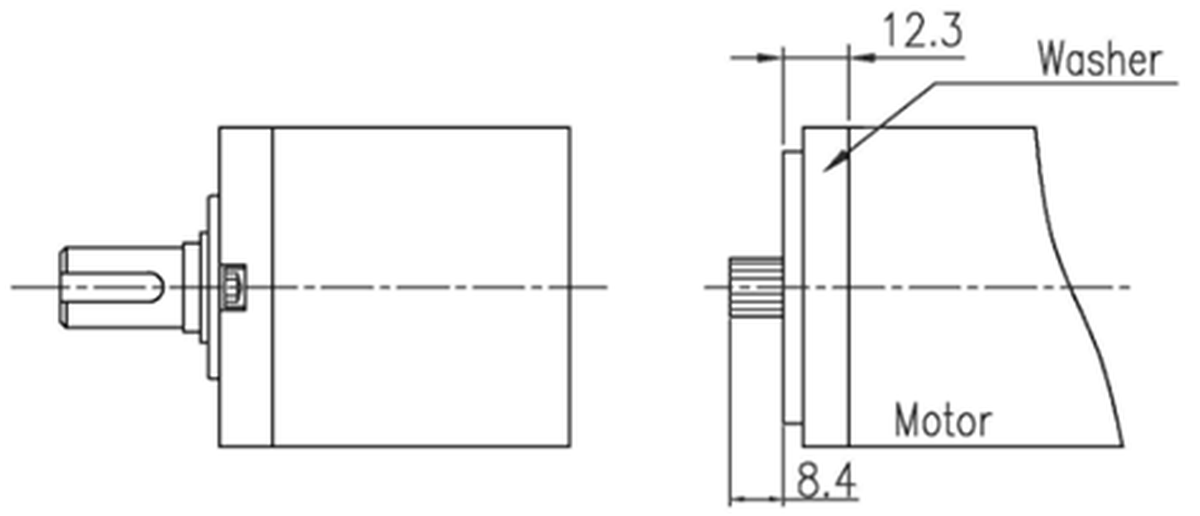

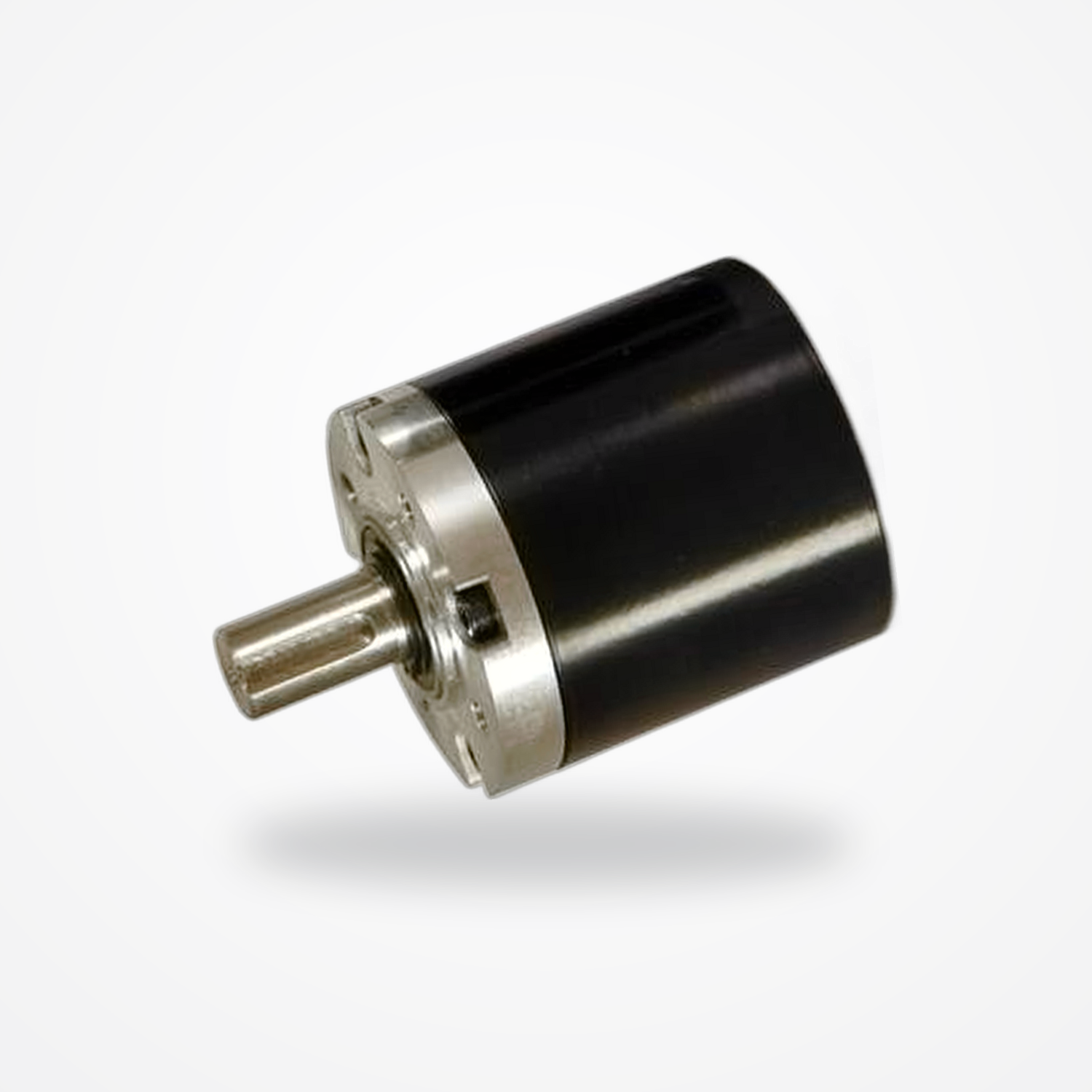

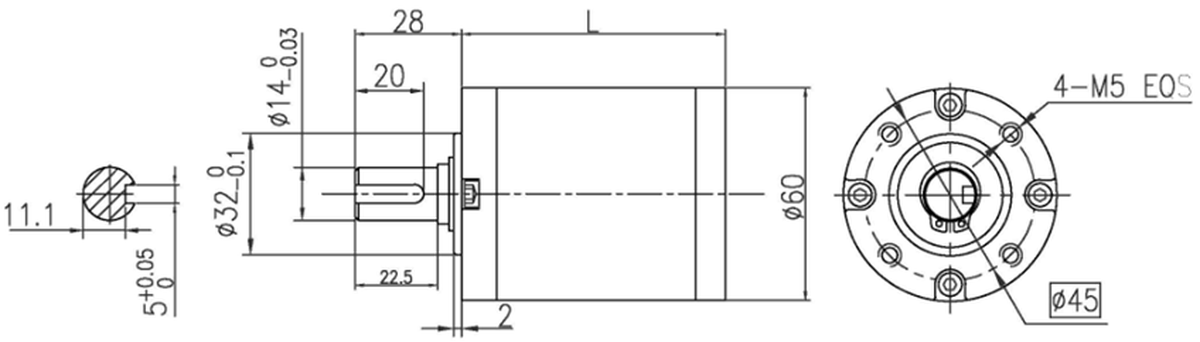

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 6060003 | 1 | 3.6000:1 | 4 | 90 | 1.5 | 40.3 | 560 | View SKU |
| 6060004 | 1 | 4.2500:1 | 4 | 90 | 1.5 | 40.3 | 560 | View SKU |
| 6060005 | 1 | 5.3333:1 | 4 | 90 | 1.5 | 40.3 | 560 | View SKU |
| 6060013 | 2 | 12.96:1 | 18 | 81 | 1.8 | 53.8 | 790 | View SKU |
| 6060015 | 2 | 15.30:1 | 18 | 81 | 1.8 | 53.8 | 790 | View SKU |
| 6060018 | 2 | 18.06:1 | 18 | 81 | 1.8 | 53.8 | 790 | View SKU |
| 6060023 | 2 | 22.67:1 | 18 | 81 | 1.8 | 53.8 | 790 | View SKU |
| 6060028 | 2 | 28.44:1 | 18 | 81 | 1.8 | 53.8 | 790 | View SKU |
| 6060047 | 3 | 46.66:1 | 36 | 73 | 2 | 67.2 | 1020 | View SKU |
| 6060055 | 3 | 55.08:1 | 36 | 73 | 2 | 67.2 | 1020 | View SKU |
| 6060065 | 3 | 65.03:1 | 36 | 73 | 2 | 67.2 | 1020 | View SKU |
| 6060077 | 3 | 76.77:1 | 36 | 73 | 2 | 67.2 | 1020 | View SKU |
| 6060096 | 3 | 96.33:1 | 36 | 73 | 2 | 67.2 | 1020 | View SKU |
| 6060121 | 3 | 120.89:1 | 36 | 73 | 2 | 67.2 | 1020 | View SKU |
| 6060154 | 4 | 153.69:1 | 45 | 66 | 2.5 | 80.6 | 1260 | View SKU |
| 6060187 | 4 | 186.62:1 | 45 | 66 | 2.5 | 80.6 | 1260 | View SKU |
| 6060220 | 4 | 220.32:1 | 45 | 66 | 2.5 | 80.6 | 1260 | View SKU |
| 6060260 | 4 | 260.10:1 | 45 | 66 | 2.5 | 80.6 | 1260 | View SKU |
| 6060307 | 4 | 307.06:1 | 45 | 66 | 2.5 | 80.6 | 1260 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 1 | 9 | 20° | — | 4 |
| 1 | 12 | 20° | — | 6 |
| 1 | 13 | 20° | — | 6 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load300 N
Max. Permissible Axial Load200 N
Max. Input Speed5000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 60JXE450K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
