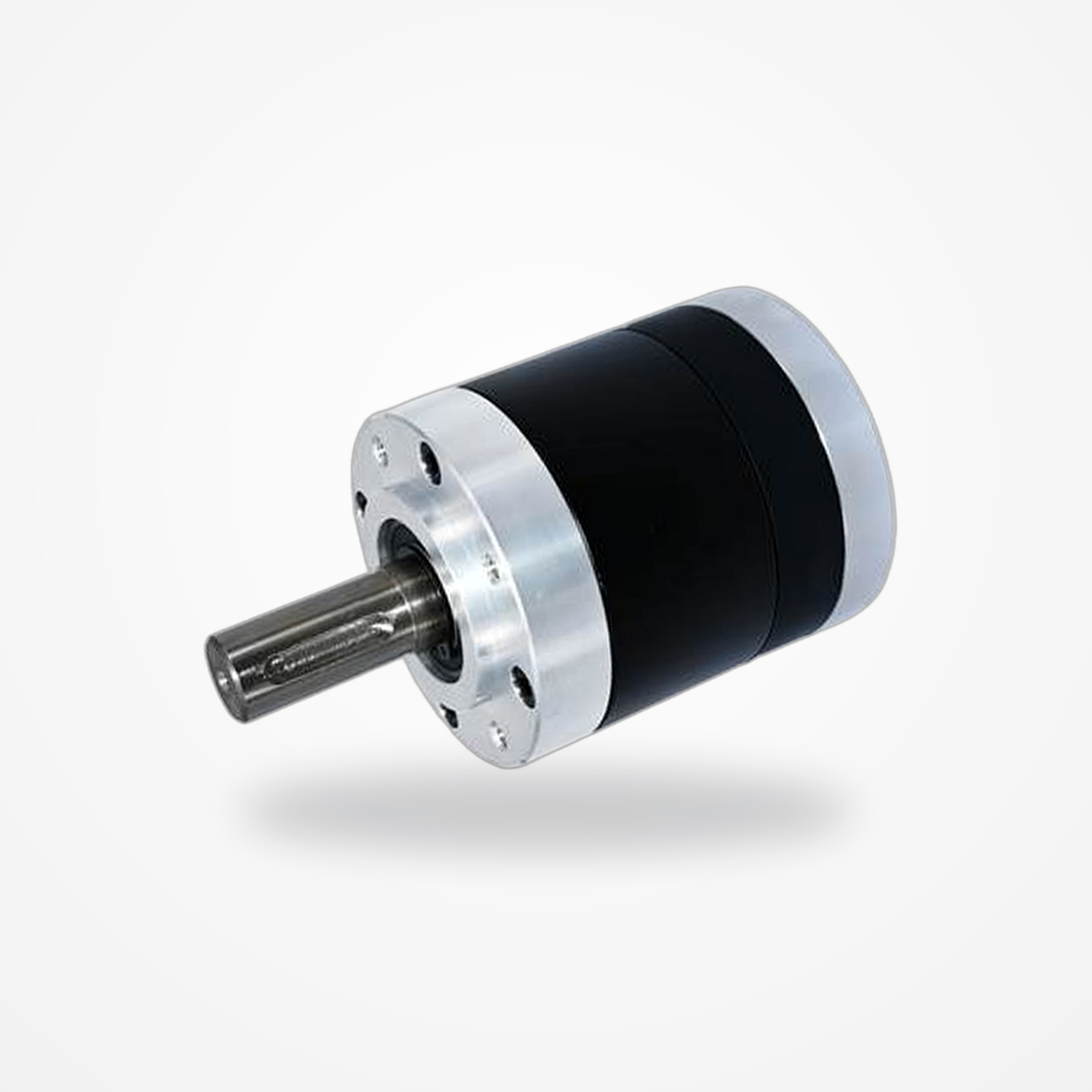

80PML1200K Low-Noise Helical Planetary Gearbox

Overview

Outer Diameter80 mm

Rated Output Torque10–120 N·m

Reduction Ratio3.5:1 – 778:1

Number of Stages1–4

Ring Gear MaterialMetal

Order No.	Number of Stages	Reduction Ratio	Rated Output Torque (N·m)	Efficiency (%)	Backlash (°)	Length (mm)	Weight (g)
8020003	1	7/2	10	90	1.5	55.7	1100	View SKU
8020005	1	5/1	10	90	1.5	55.7	1100	View SKU
8020007	1	7/1	10	90	1.5	55.7	1100	View SKU
8020012	2	273/22	40	81	1.8	72	1500	View SKU
8020018	2	195/11	40	81	1.8	72	1500	View SKU
8020020	2	375/19	40	81	1.8	72	1500	View SKU
8020025	2	273/11	40	81	1.8	72	1500	View SKU
8020028	2	85/3	40	81	1.8	72	1500	View SKU
8020040	2	119/3	40	81	1.8	72	1500	View SKU
8020049	3	20475/418	80	73	2	88.3	1880	View SKU
8020070	3	14625/209	80	73	2	88.3	1880	View SKU
8020105	3	25875/247	80	73	2	88.3	1880	View SKU
8020147	3	36225/247	80	73	2	88.3	1880	View SKU
8020174	4	798525/4598	120	66	2.5	109.2	2280	View SKU
8020248	4	570375/2299	120	66	2.5	109.2	2280	View SKU
8020347	4	798525/2299	120	66	2.5	109.2	2280	View SKU
8020389	4	2499525/6422	120	66	2.5	109.2	2280	View SKU
8020556	4	1785375/3211	120	66	2.5	109.2	2280	View SKU
8020778	4	2499525/3211	120	66	2.5	109.2	2280	View SKU

Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.

Module	Number of Teeth	Pressure Angle	Helix Angle	Bore Diameter (mm)
0.9	10	20°	16°	8
0.9	15	20°	16°	8
0.9	24	20°	16°	8

Output Shaft BearingRolling Bearing

Max. Permissible Radial Load400 N

Max. Permissible Axial Load120 N

Max. Input Speed4000 rpm

Operating Temperature-15 – 80 °C

Frame ShapeRound

CustomizationAvailable on request
