Precision Planetary Gearbox for Stepper Motors

Series B · Precision — 11 models.

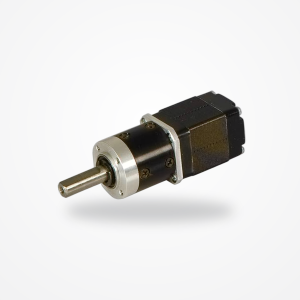

22JMS20K

Series B · Spur

Outer Ø: 22 mm

Torque: 0.6–2 N·m

Ratio: 3.71–139

Stages: 1–3 · 9 ratios

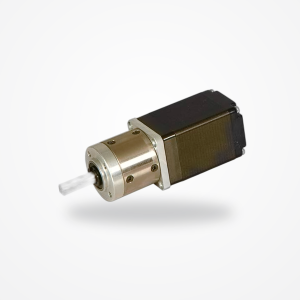

28JMS40K

Series B · Spur

Outer Ø: 28 mm

Torque: 1.2–4 N·m

Ratio: 3.71–139

Stages: 1–3 · 10 ratios

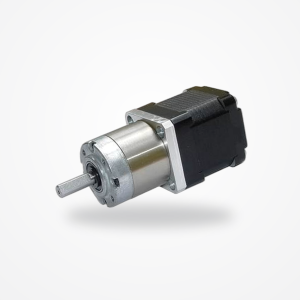

32JMS40K

Series B · Spur

Outer Ø: 32 mm

Torque: 0.8–4 N·m

Ratio: 3.71–139

Stages: 1–3 · 10 ratios

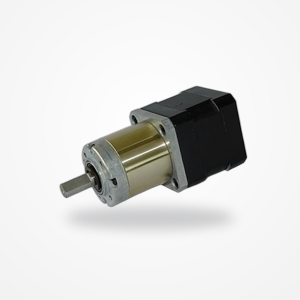

36JMS60K

Series B · Spur

Outer Ø: 36 mm

Torque: 2–6 N·m

Ratio: 3.71–139

Stages: 1–3 · 10 ratios

42JMS100K

Series B · Spur

Outer Ø: 42 mm

Torque: 3–10 N·m

Ratio: 3.71–139

Stages: 1–3 · 9 ratios

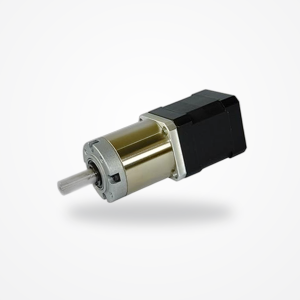

42JMS150K

Series B · Spur

Outer Ø: 42 mm

Torque: 4–15 N·m

Ratio: 3.71–139

Stages: 1–3 · 9 ratios

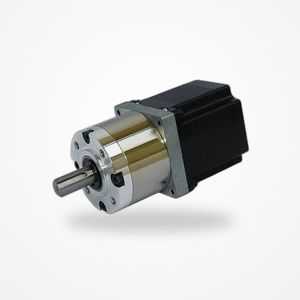

56JMS300K

Series B · Spur

Outer Ø: 56 mm

Torque: 6–30 N·m

Ratio: 3.6–77

Stages: 1–3 · 13 ratios

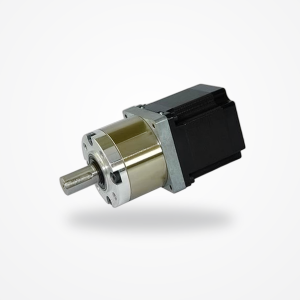

56JMS500K

Series B · Spur

Outer Ø: 56 mm

Torque: 10–50 N·m

Ratio: 3.6–77

Stages: 1–3 · 13 ratios

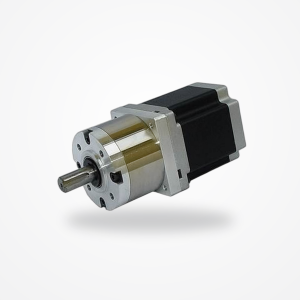

60JMS300K

Series B · Spur

Outer Ø: 60 mm

Torque: 6–30 N·m

Ratio: 3.6–77

Stages: 1–3 · 13 ratios

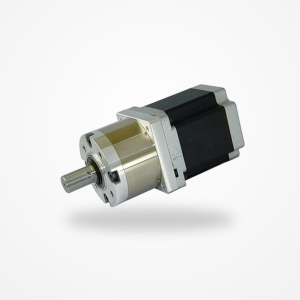

60JMS500K

Series B · Spur

Outer Ø: 60 mm

Torque: 10–50 N·m

Ratio: 3.6–77

Stages: 1–3 · 13 ratios

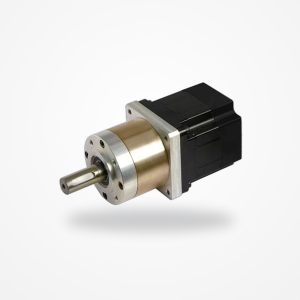

80JMS1200K

Series B · Spur

Outer Ø: 80 mm

Torque: 24–120 N·m

Ratio: 3.55–138

Stages: 1–3 · 14 ratios
