16GPC4K

Servo Planetary Gearbox for Coreless Motors · Spur gear

Overview

Outer Diameter16 mm
Rated Output Torque0.1–0.4 N·m
Reduction Ratio4:1 – 4874:1
Number of Stages1–5
Ring Gear MaterialMetal

Drawings & Photos

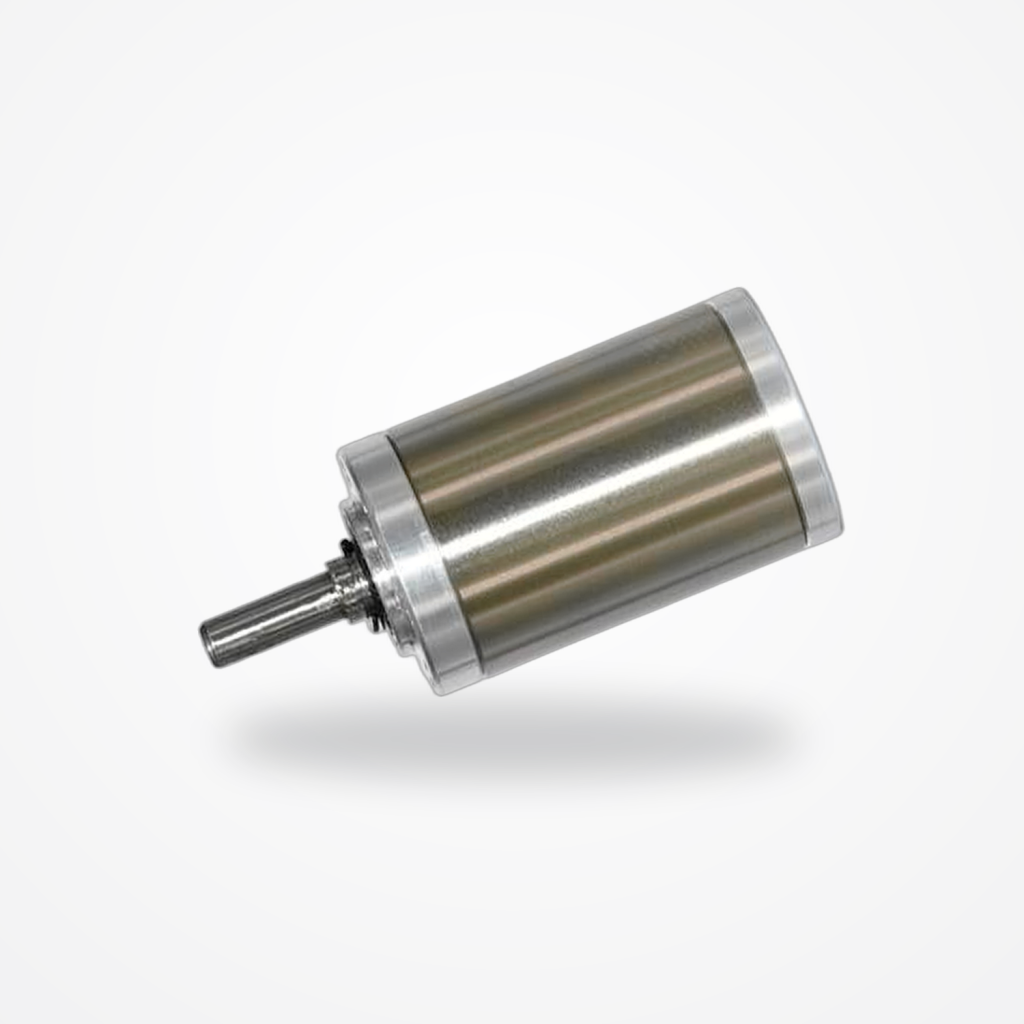

16GPC4K Product photo
Product photoclick to enlarge

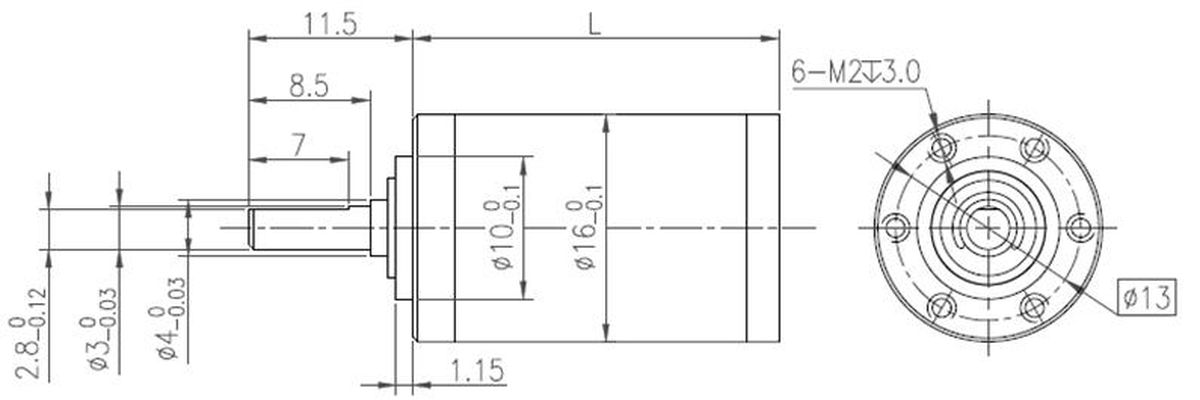

16GPC4K Dimension drawing
Dimension drawingclick to enlarge

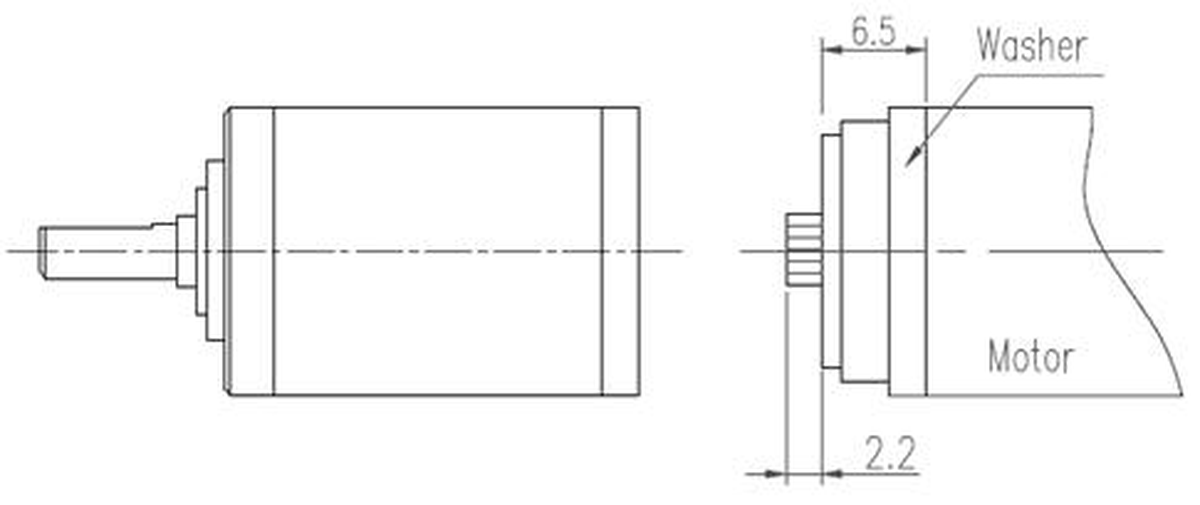

16GPC4K Assembly drawing
Assembly drawingclick to enlarge

Specifications

Order No. Number of Stages Reduction Ratio Rated Output Torque
(N·m)		 Efficiency
(%)		 Backlash
(°)		 Length
(mm)		 Weight
(g)
1620004 1 4/1 0.1 90 0.6 18.3 10 View SKU
1620005 1 19/4 0.1 90 0.6 18.3 10 View SKU
1620006 1 6/1 0.1 90 0.6 18.3 10 View SKU
1620016 2 16/1 0.16 81 0.8 22 17 View SKU
1620019 2 19/1 0.16 81 0.8 22 17 View SKU
1620023 2 361/16 0.16 81 0.8 22 17 View SKU
1620029 2 57/2 0.16 81 0.8 22 17 View SKU
1620036 2 36/1 0.16 81 0.8 22 17 View SKU
1620064 3 64/1 0.32 73 1 25.7 25 View SKU
1620076 3 76/1 0.32 73 1 25.7 25 View SKU
1620090 3 361/4 0.32 73 1 25.7 25 View SKU
1620107 3 6859/64 0.32 73 1 25.7 25 View SKU
1620171 3 171/1 0.32 73 1 25.7 25 View SKU
1620216 3 216/1 0.32 73 1 25.7 25 View SKU
1620256 4 256/1 0.4 66 1.2 29.4 35 View SKU
1620304 4 304/1 0.4 66 1.2 29.4 35 View SKU
1620361 4 361/1 0.4 66 1.2 29.4 35 View SKU
1620429 4 6859/16 0.4 66 1.2 29.4 35 View SKU
1620576 4 576/1 0.4 66 1.2 29.4 35 View SKU
1620684 4 684/1 0.4 66 1.2 29.4 35 View SKU
1620812 4 3249/4 0.4 66 1.2 29.4 35 View SKU
1621026 4 1026/1 0.4 66 1.2 29.4 35 View SKU
1621296 4 1296/1 0.4 66 1.2 29.4 35 View SKU
1621536 5 1536/1 0.4 59 1.2 33 45 View SKU
1621824 5 1824/1 0.4 59 1.2 33 45 View SKU
1622166 5 2166/1 0.4 59 1.2 33 45 View SKU
1622572 5 20577/8 0.4 59 1.2 33 45 View SKU
1623054 5 390963/128 0.4 59 1.2 33 45 View SKU
1623249 5 3249/1 0.4 59 1.2 33 45 View SKU
1623858 5 61731/16 0.4 59 1.2 33 45 View SKU
1624874 5 9747/2 0.4 59 1.2 33 45 View SKU

Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.

Motor Shaft Pinion

Module Number of Teeth Pressure Angle Helix Angle Bore Diameter (mm)
0.4 9 20° — 2.02 / 2.32
0.4 12 20° — 2.02 / 2.32
0.4 15 20° — 2.02 / 2.32

General Specifications

Output Shaft BearingRolling Bearing
Max. Permissible Radial Load20 N
Max. Permissible Axial Load50 N
Max. Input Speed12000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request

Request a Quote

Interested in 16GPC4K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
