22GPC20K

Servo Planetary Gearbox for Coreless Motors · Spur gear

Overview

Outer Diameter22 mm
Rated Output Torque0.5–2 N·m
Reduction Ratio4:1 – 4874:1
Number of Stages1–5
Ring Gear MaterialMetal

Drawings & Photos

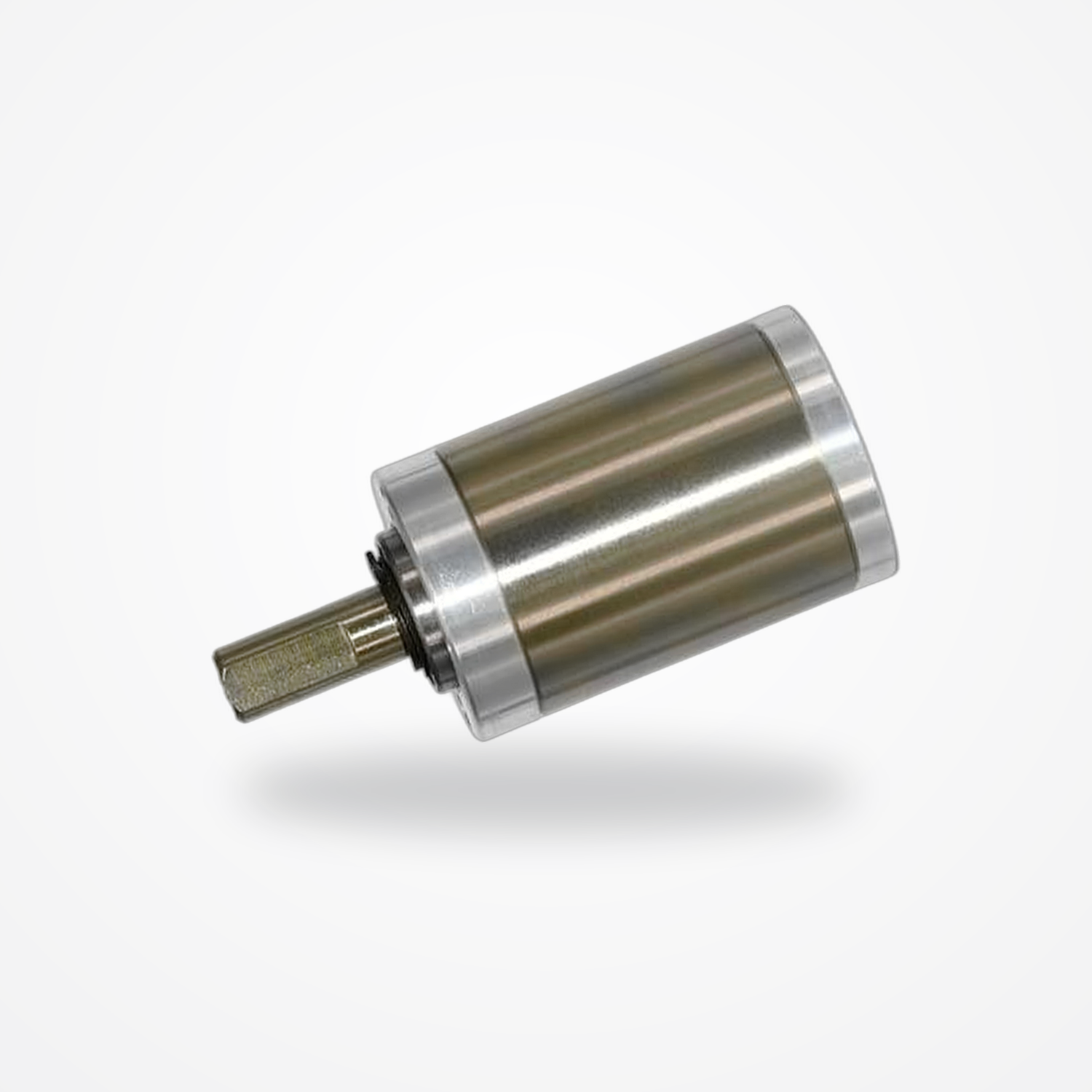

22GPC20K Product photo
Product photoclick to enlarge

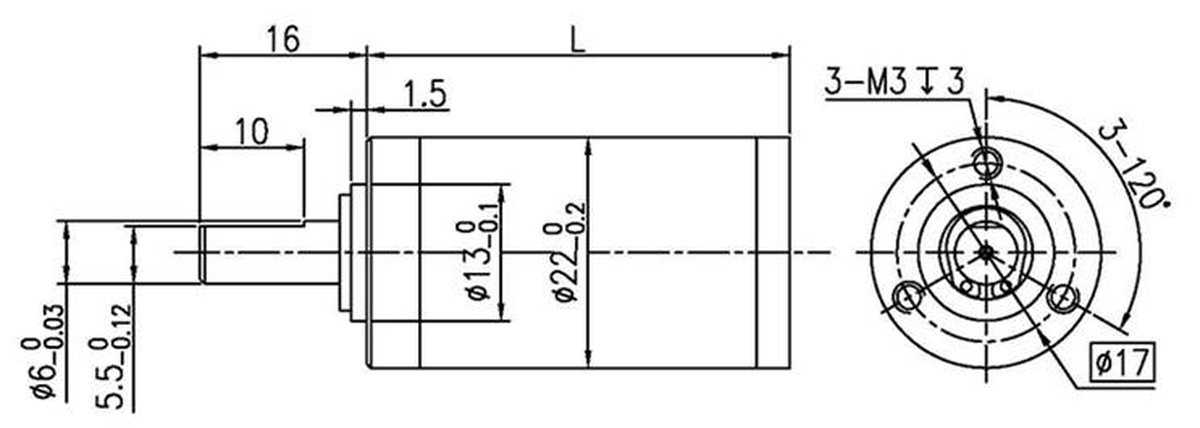

22GPC20K Dimension drawing
Dimension drawingclick to enlarge

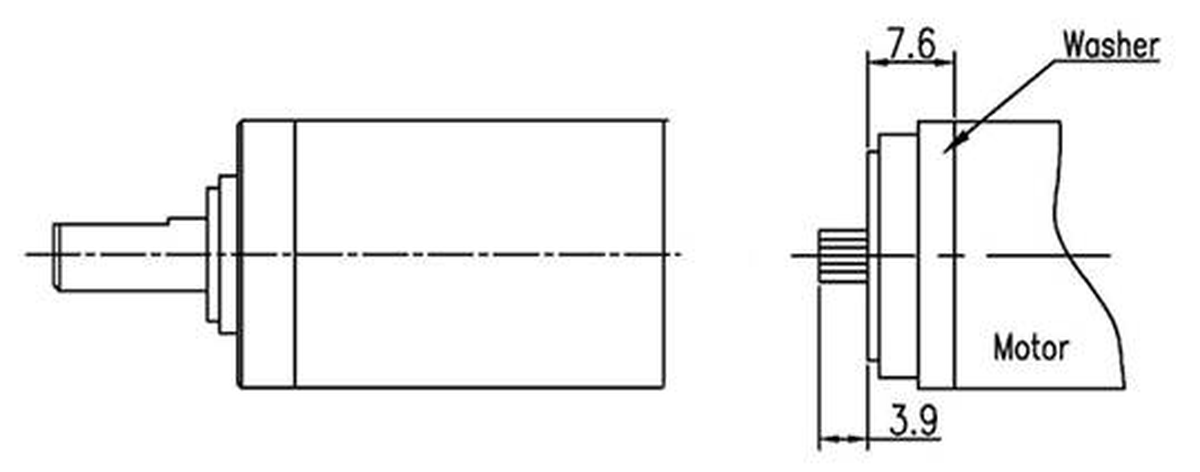

22GPC20K Assembly drawing
Assembly drawingclick to enlarge

Specifications

Order No. Number of Stages Reduction Ratio Rated Output Torque
(N·m)		 Efficiency
(%)		 Backlash
(°)		 Length
(mm)		 Weight
(g)
2270004 1 4/1 0.5 90 0.6 24.7 52 View SKU
2270005 1 19/4 0.5 90 0.6 24.7 52 View SKU
2270006 1 6/1 0.5 90 0.6 24.7 52 View SKU
2270016 2 16/1 0.8 81 0.8 32.3 68 View SKU
2270019 2 19/1 0.8 81 0.8 32.3 68 View SKU
2270023 2 361/16 0.8 81 0.8 32.3 68 View SKU
2270029 2 57/2 0.8 81 0.8 32.3 68 View SKU
2270036 2 36/1 0.8 81 0.8 32.3 68 View SKU
2270064 3 64/1 1.2 73 1 37.7 79 View SKU
2270076 3 76/1 1.2 73 1 37.7 79 View SKU
2270090 3 361/4 1.2 73 1 37.7 79 View SKU
2270107 3 6859/64 1.2 73 1 37.7 79 View SKU
2270171 3 171/1 1.2 73 1 37.7 79 View SKU
2270216 3 216/1 1.2 73 1 37.7 79 View SKU
2270256 4 256/1 1.8 66 1.2 43.1 91 View SKU
2270304 4 304/1 1.8 66 1.2 43.1 91 View SKU
2270361 4 361/1 1.8 66 1.2 43.1 91 View SKU
2270429 4 6859/16 1.8 66 1.2 43.1 91 View SKU
2270576 4 576/1 1.8 66 1.2 43.1 91 View SKU
2270684 4 684/1 1.8 66 1.2 43.1 91 View SKU
2270812 4 3249/4 1.8 66 1.2 43.1 91 View SKU
2271026 4 1026/1 1.8 66 1.2 43.1 91 View SKU
2271296 4 1292/1 1.8 66 1.2 43.1 91 View SKU
2271536 5 1536/1 2 59 1.2 48.4 102 View SKU
2271824 5 1824/1 2 59 1.2 48.4 102 View SKU
2272166 5 2166/1 2 59 1.2 48.4 102 View SKU
2272572 5 20577/8 2 59 1.2 48.4 102 View SKU
2273054 5 390963/128 2 59 1.2 48.4 102 View SKU
2273249 5 3249/1 2 59 1.2 48.4 102 View SKU
2273858 5 61731/16 2 59 1.2 48.4 102 View SKU
2274874 5 9747/2 2 59 1.2 48.4 102 View SKU

Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.

Motor Shaft Pinion

Module Number of Teeth Pressure Angle Helix Angle Bore Diameter (mm)
0.4 9 20° — 2.02 / 2.32
0.4 12 20° — 2.02 / 2.32
0.4 15 20° — 2.02 / 2.32

General Specifications

Output Shaft BearingRolling Bearing
Max. Permissible Radial Load80 N
Max. Permissible Axial Load100 N
Max. Input Speed8000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
