36JNB30K

Integrated Planetary Gearbox · Spur gear

Overview

Outer Diameter36 mm
Rated Output Torque0.3–3 N·m
Reduction Ratio3.71:1 – 721:1
Number of Stages1–4
Ring Gear MaterialSintered Powder Metal

Drawings & Photos

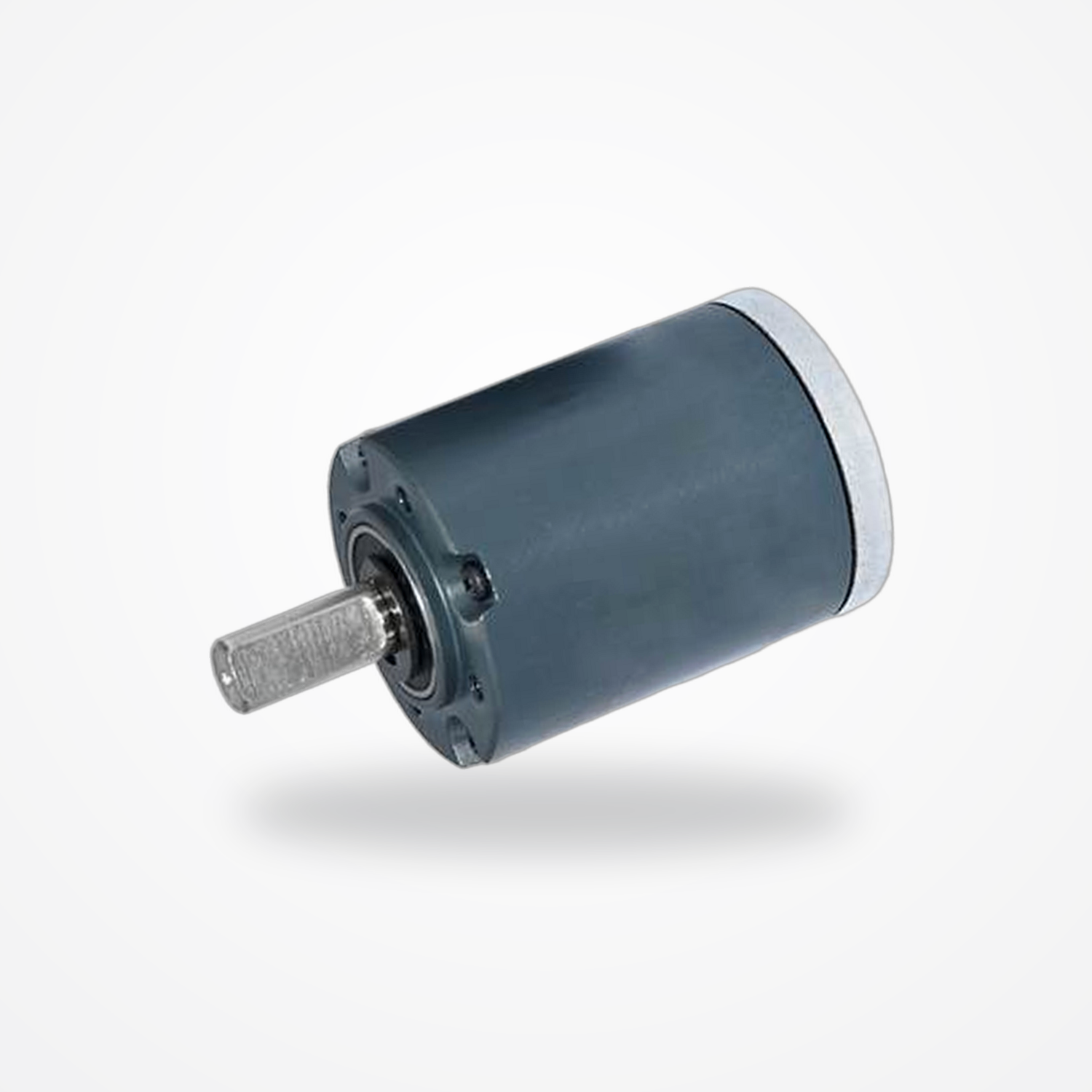

36JNB30K Product photo
Product photoclick to enlarge

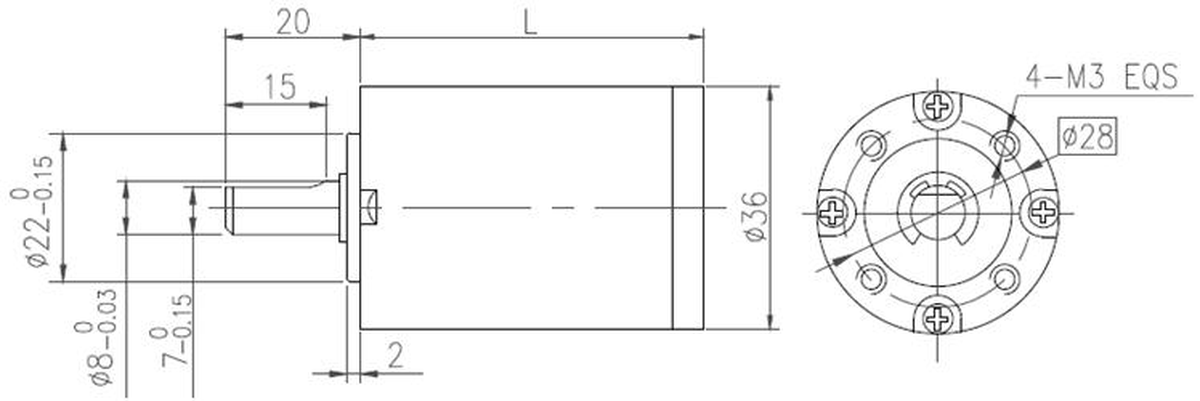

36JNB30K Dimension drawing
Dimension drawingclick to enlarge

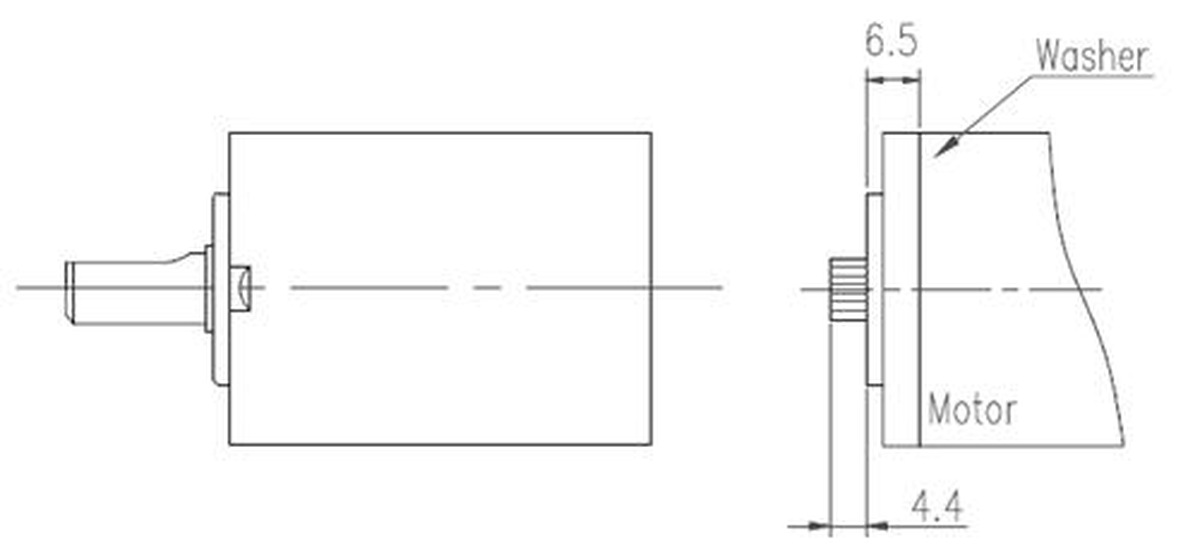

36JNB30K Assembly drawing
Assembly drawingclick to enlarge

Specifications

Order No. Number of Stages Reduction Ratio Rated Output Torque
(N·m)		 Efficiency
(%)		 Backlash
(°)		 Length
(mm)		 Weight
(g)
3680004 1 3.7059:1 0.3 90 1.5 26.5 180 View SKU
3680005 1 5.1818:1 0.3 90 1.5 26.5 180 View SKU
3680014 2 13.73:1 1.2 81 1.8 33.6 219 View SKU
3680019 2 19.20:1 1.2 81 1.8 33.6 219 View SKU
3680027 2 26.85:1 1.2 81 1.8 33.6 219 View SKU
3680035 2 34.96:1 1.2 81 1.8 33.6 219 View SKU
3680051 3 50.89:1 2.5 73 2 40.5 260 View SKU
3680071 3 71.16:1 2.5 73 2 40.5 260 View SKU
3680100 3 99.51:1 2.5 73 2 40.5 260 View SKU
3680139 3 139.14:1 2.5 73 2 40.5 260 View SKU
3680189 4 188.61:1 3 66 2.5 47.4 308 View SKU
3680264 4 263.73:1 3 66 2.5 47.4 308 View SKU
3680369 4 368.76:1 3 66 2.5 47.4 308 View SKU
3680516 4 515.63:1 3 66 2.5 47.4 308 View SKU
3680721 4 720.99:1 3 66 2.5 47.4 308 View SKU

Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.

Motor Shaft Pinion

Module Number of Teeth Pressure Angle Helix Angle Bore Diameter (mm)
0.5 11 20° — 2.32
0.5 17 20° — 2.32

General Specifications

Output Shaft BearingRolling Bearing / Oil-Impregnated Bearing
Max. Permissible Radial Load100 N
Max. Permissible Axial Load50 N
Max. Input Speed8000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
