Integrated Planetary Gearbox

Series E · Economical Integrated — 11 models.

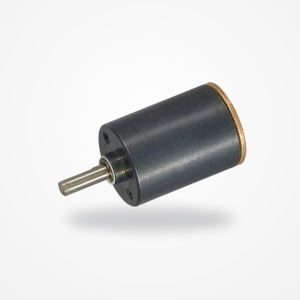

16JX3K

Series E · Spur

Outer Ø: 16 mm

Torque: 0.03–0.3 N·m

Ratio: 4–509

Stages: 1–4 · 14 ratios

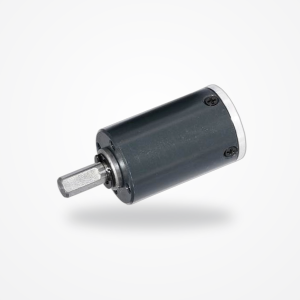

22JNB15K

Series E · Spur

Outer Ø: 22 mm

Torque: 0.2–1.5 N·m

Ratio: 4–1296

Stages: 1–4 · 24 ratios

22JNB15K

Series E · Spur

Outer Ø: 22 mm

Torque: 0.2–1.5 N·m

Ratio: 4–1296

Stages: 1–4 · 24 ratios

22JNB20K

Series E · Spur

Outer Ø: 22 mm

Torque: 0.2–2 N·m

Ratio: 3.71–721

Stages: 1–4 · 14 ratios

24JNB20K

Series E · Spur

Outer Ø: 24 mm

Torque: 0.2–2 N·m

Ratio: 3.71–721

Stages: 1–4 · 14 ratios

28JNB30K

Series E · Spur

Outer Ø: 28 mm

Torque: 0.3–3 N·m

Ratio: 3.71–721

Stages: 1–4 · 15 ratios

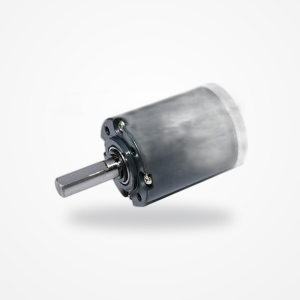

28JNC20K

Series E · Spur

Outer Ø: 28 mm

Torque: 0.2–2 N·m

Ratio: 3.71–721

Stages: 1–4 · 14 ratios

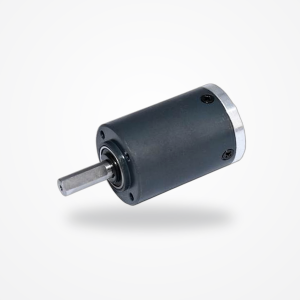

28JND50K

Series E · Spur

Outer Ø: 28 mm

Torque: 0.5–5 N·m

Ratio: 4–1296

Stages: 1–4 · 14 ratios

30JNB30K

Series E · Spur

Outer Ø: 30 mm

Torque: 0.3–3 N·m

Ratio: 3.71–721

Stages: 1–4 · 15 ratios

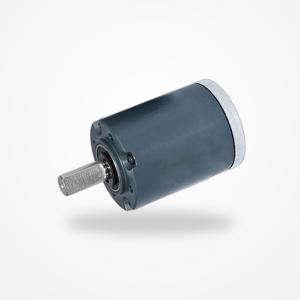

36JNB30K

Series E · Spur

Outer Ø: 36 mm

Torque: 0.3–3 N·m

Ratio: 3.71–721

Stages: 1–4 · 15 ratios

36JNB50K

Series E · Spur

Outer Ø: 36 mm

Torque: 0.5–5 N·m

Ratio: 3.71–721

Stages: 1–4 · 15 ratios
