36JNB50K

Integrated Planetary Gearbox · Spur gear

Overview

Outer Diameter36 mm
Rated Output Torque0.5–5 N·m
Reduction Ratio3.71:1 – 721:1
Number of Stages1–4
Ring Gear MaterialSintered Powder Metal

Drawings & Photos

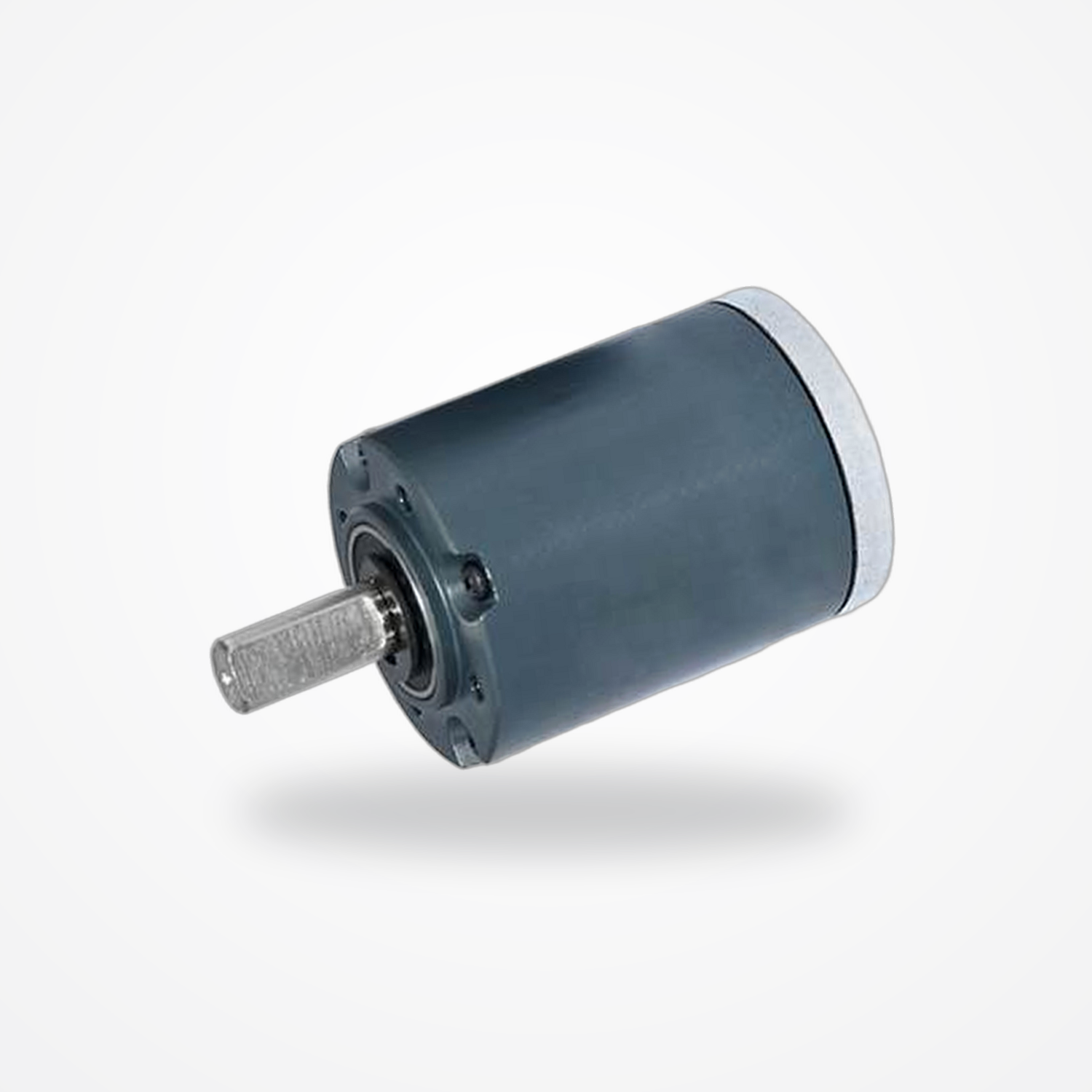

36JNB50K Product photo
Product photoclick to enlarge

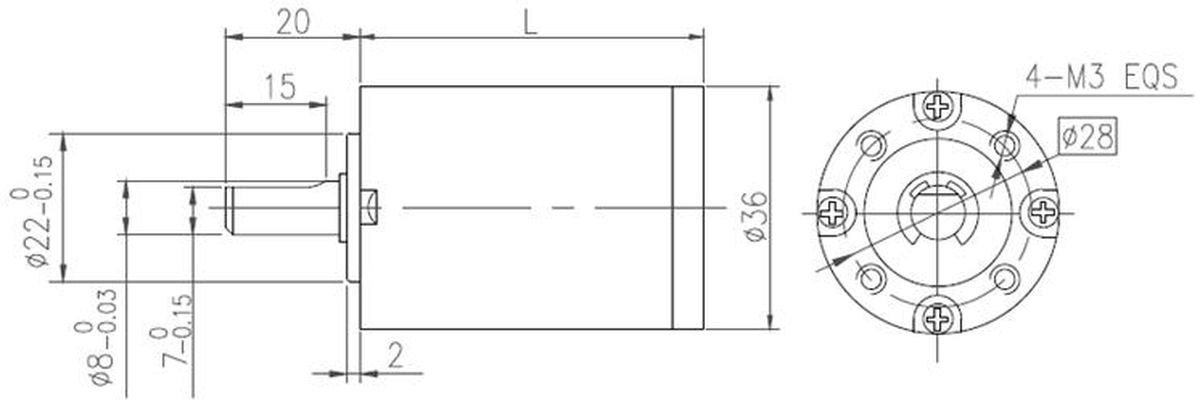

36JNB50K Dimension drawing
Dimension drawingclick to enlarge

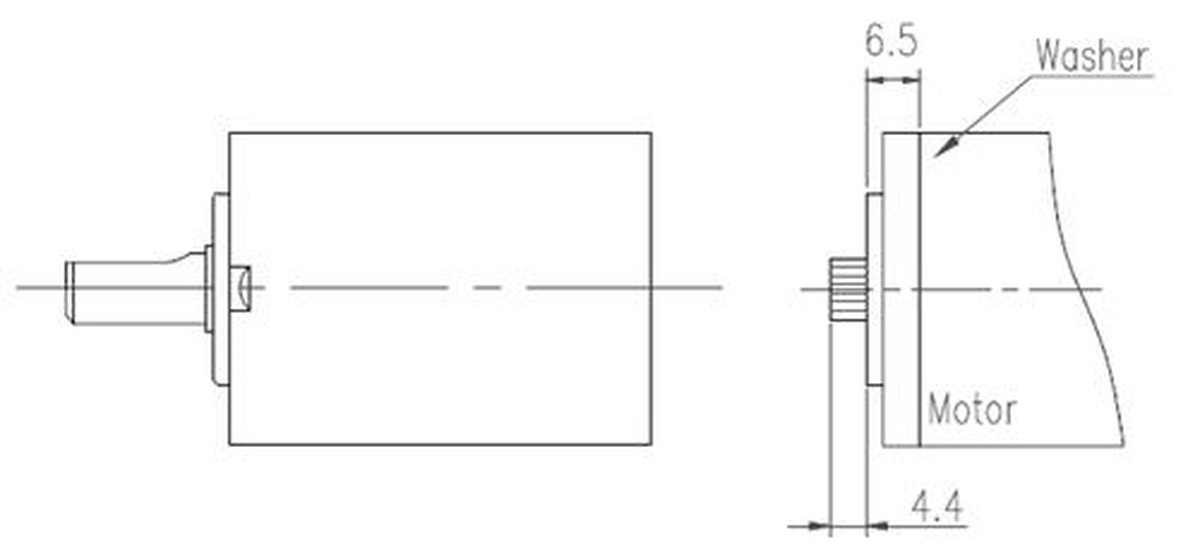

36JNB50K Assembly drawing
Assembly drawingclick to enlarge

Specifications

Order No. Number of Stages Reduction Ratio Rated Output Torque
(N·m)		 Efficiency
(%)		 Backlash
(°)		 Length
(mm)		 Weight
(g)
3690004 1 3.7059:1 0.5 90 1.5 28.6 210 View SKU
3690005 1 5.1818:1 0.5 90 1.5 28.6 210 View SKU
3690014 2 13.73:1 2 81 1.8 37.6 255 View SKU
3690019 2 19.20:1 2 81 1.8 37.6 255 View SKU
3690027 2 26.85:1 2 81 1.8 37.6 255 View SKU
3690035 2 34.96:1 2 81 1.8 37.6 255 View SKU
3690051 3 50.89:1 4 73 2 47.5 295 View SKU
3690071 3 71.16:1 4 73 2 47.5 295 View SKU
3690100 3 99.51:1 4 73 2 47.5 295 View SKU
3690139 3 139.14:1 4 73 2 47.5 295 View SKU
3690189 4 188.61:1 5 66 2.5 55.8 345 View SKU
3690264 4 263.73:1 5 66 2.5 55.8 345 View SKU
3690369 4 368.76:1 5 66 2.5 55.8 345 View SKU
3690516 4 515.63:1 5 66 2.5 55.8 345 View SKU
3690721 4 720.99:1 5 66 2.5 55.8 345 View SKU

Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.

Motor Shaft Pinion

Module Number of Teeth Pressure Angle Helix Angle Bore Diameter (mm)
0.5 11 20° — 2.32
0.5 17 20° — 2.32

General Specifications

Output Shaft BearingRolling Bearing / Oil-Impregnated Bearing
Max. Permissible Radial Load100 N
Max. Permissible Axial Load50 N
Max. Input Speed8000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
