22JNB15K
Integrated Planetary Gearbox · Spur gear
Overview
Outer Diameter22 mm
Rated Output Torque0.2–1.5 N·m
Reduction Ratio4:1 – 1296:1
Number of Stages1–4
Ring Gear MaterialSintered Powder Metal

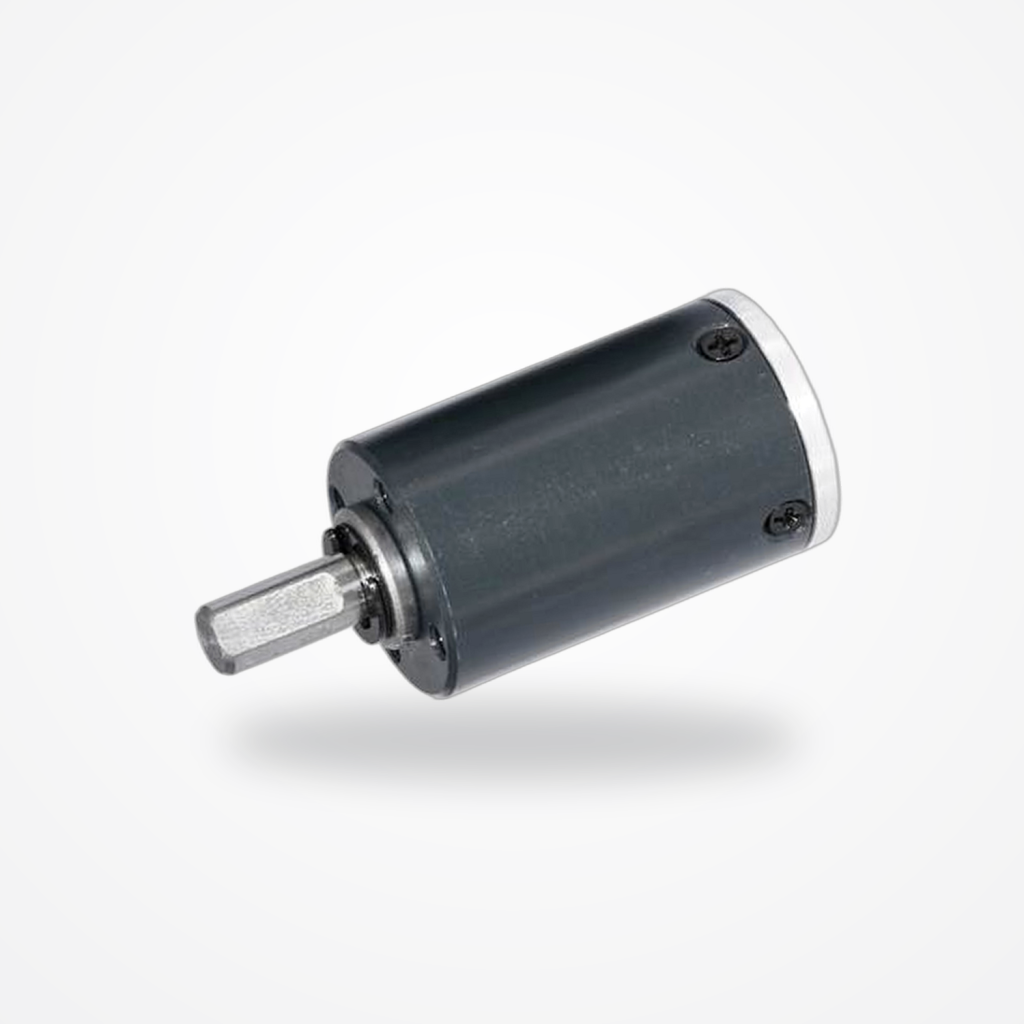

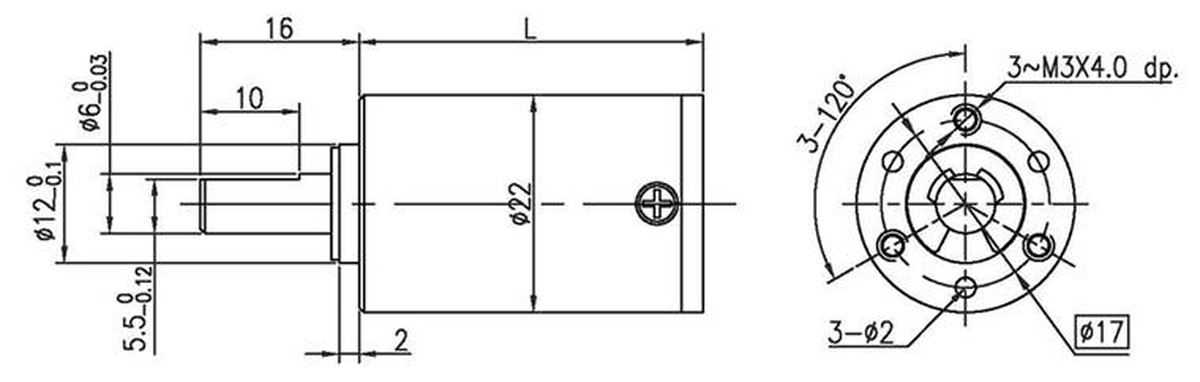

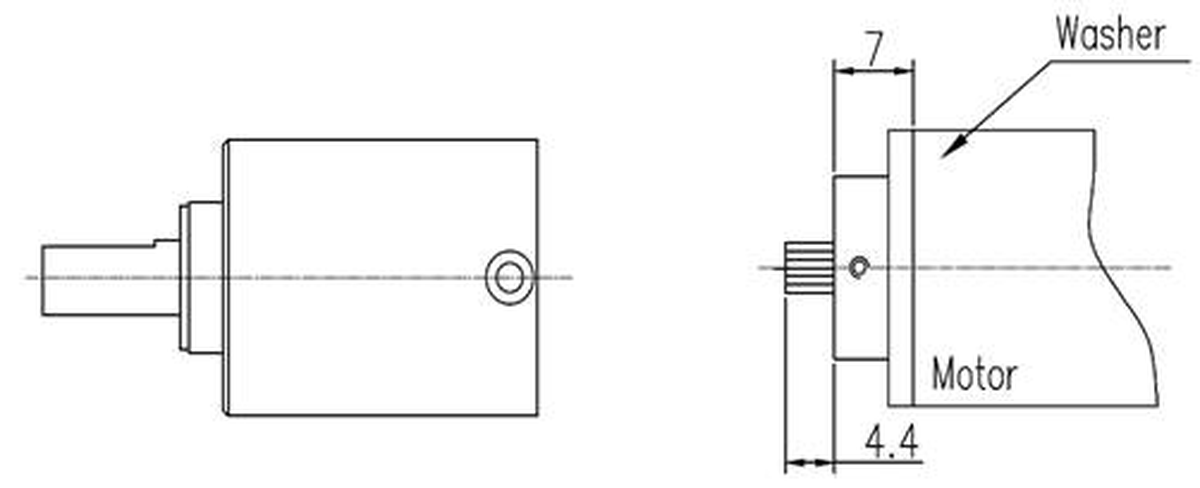

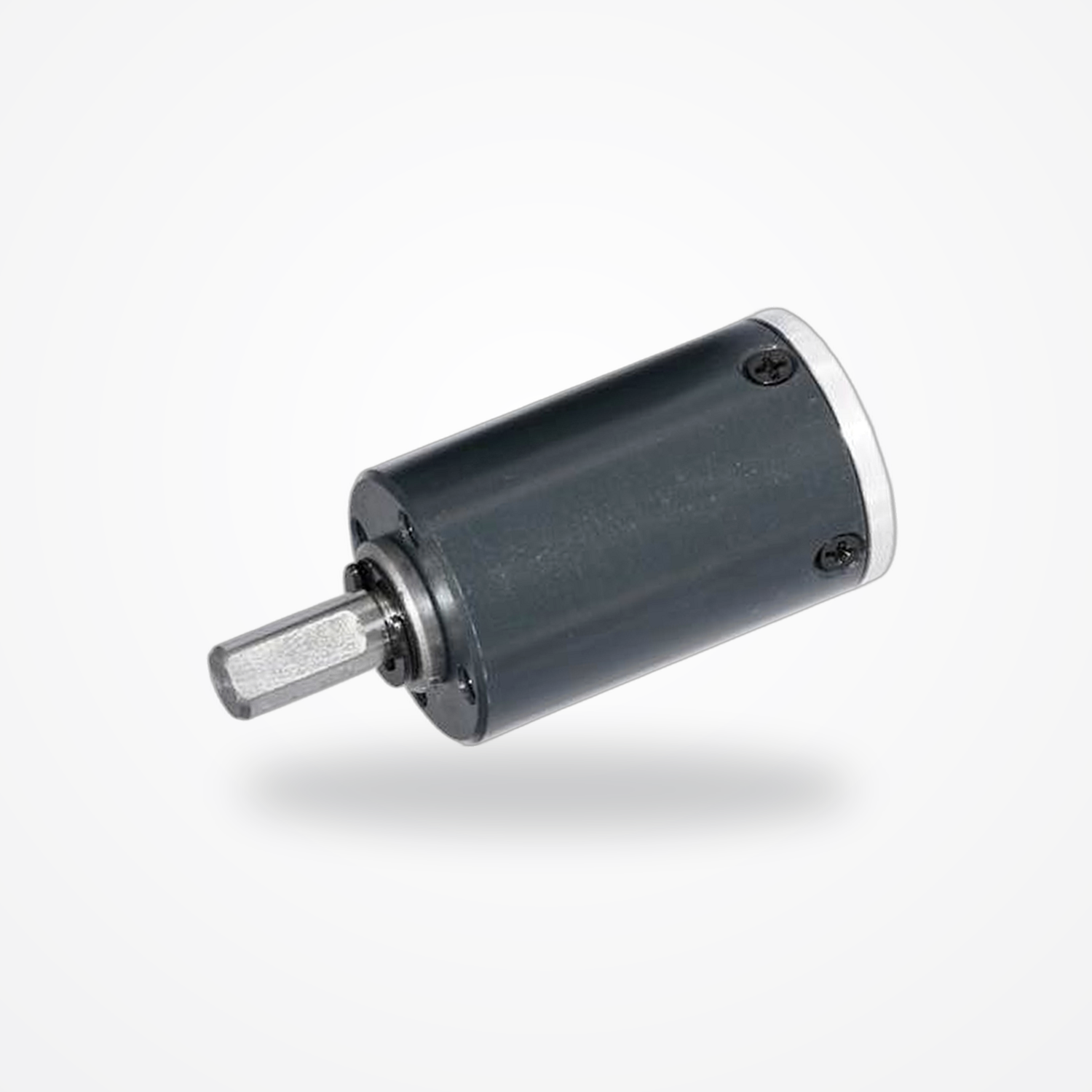

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 2250004 | 1 | 4.0000:1 | 0.2 | 90 | 1.5 | 22.9 | 38 | View SKU |
| 2250005 | 1 | 4.7500:1 | 0.2 | 90 | 1.5 | 22.9 | 38 | View SKU |
| 2250006 | 1 | 6.0000:1 | 0.2 | 90 | 1.5 | 22.9 | 38 | View SKU |
| 2250016 | 2 | 16.00:1 | 0.6 | 81 | 1.8 | 29.3 | 44 | View SKU |
| 2250019 | 2 | 19.00:1 | 0.6 | 81 | 1.8 | 29.3 | 44 | View SKU |
| 2250023 | 2 | 22.56:1 | 0.6 | 81 | 1.8 | 29.3 | 44 | View SKU |
| 2250029 | 2 | 28.50:1 | 0.6 | 81 | 1.8 | 29.3 | 44 | View SKU |
| 2250036 | 2 | 36.00:1 | 0.6 | 81 | 1.8 | 29.3 | 44 | View SKU |
| 2250064 | 3 | 64.00:1 | 1.2 | 73 | 2 | 35.7 | 52 | View SKU |
| 2250076 | 3 | 76.00:1 | 1.2 | 73 | 2 | 35.7 | 52 | View SKU |
| 2250090 | 3 | 90.25:1 | 1.2 | 73 | 2 | 35.7 | 52 | View SKU |
| 2250107 | 3 | 107.17:1 | 1.2 | 73 | 2 | 35.7 | 52 | View SKU |
| 2250171 | 3 | 171.00:1 | 1.2 | 73 | 2 | 35.7 | 52 | View SKU |
| 2250216 | 3 | 216.00:1 | 1.2 | 73 | 2 | 35.7 | 52 | View SKU |
| 2250256 | 4 | 256.00:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250304 | 4 | 304.00:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250361 | 4 | 361.00 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250429 | 4 | 428.69:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250509 | 4 | 509.07:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250576 | 4 | 576.00:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250684 | 4 | 684.00:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2250812 | 4 | 812.25:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2251026 | 4 | 1026.00:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
| 2251296 | 4 | 1296.00:1 | 1.5 | 66 | 2.5 | 42 | 60 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.4 | 9 | 20° | — | 2.02 / 2.32 |
| 0.4 | 12 | 20° | — | 2.02 / 2.32 |
| 0.4 | 15 | 20° | — | 2.02 / 2.32 |
General Specifications
Output Shaft BearingRolling Bearing / Oil-Impregnated Bearing
Max. Permissible Radial Load50 N
Max. Permissible Axial Load20 N
Max. Input Speed10000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 22JNB15K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
