36JXBL50K
Low-Noise Helical Planetary Gearbox · Helical gear
Overview
Outer Diameter36 mm
Rated Output Torque0.5–5 N·m
Reduction Ratio14:1 – 596:1
Number of Stages2–4
Ring Gear MaterialSintered Powder Metal

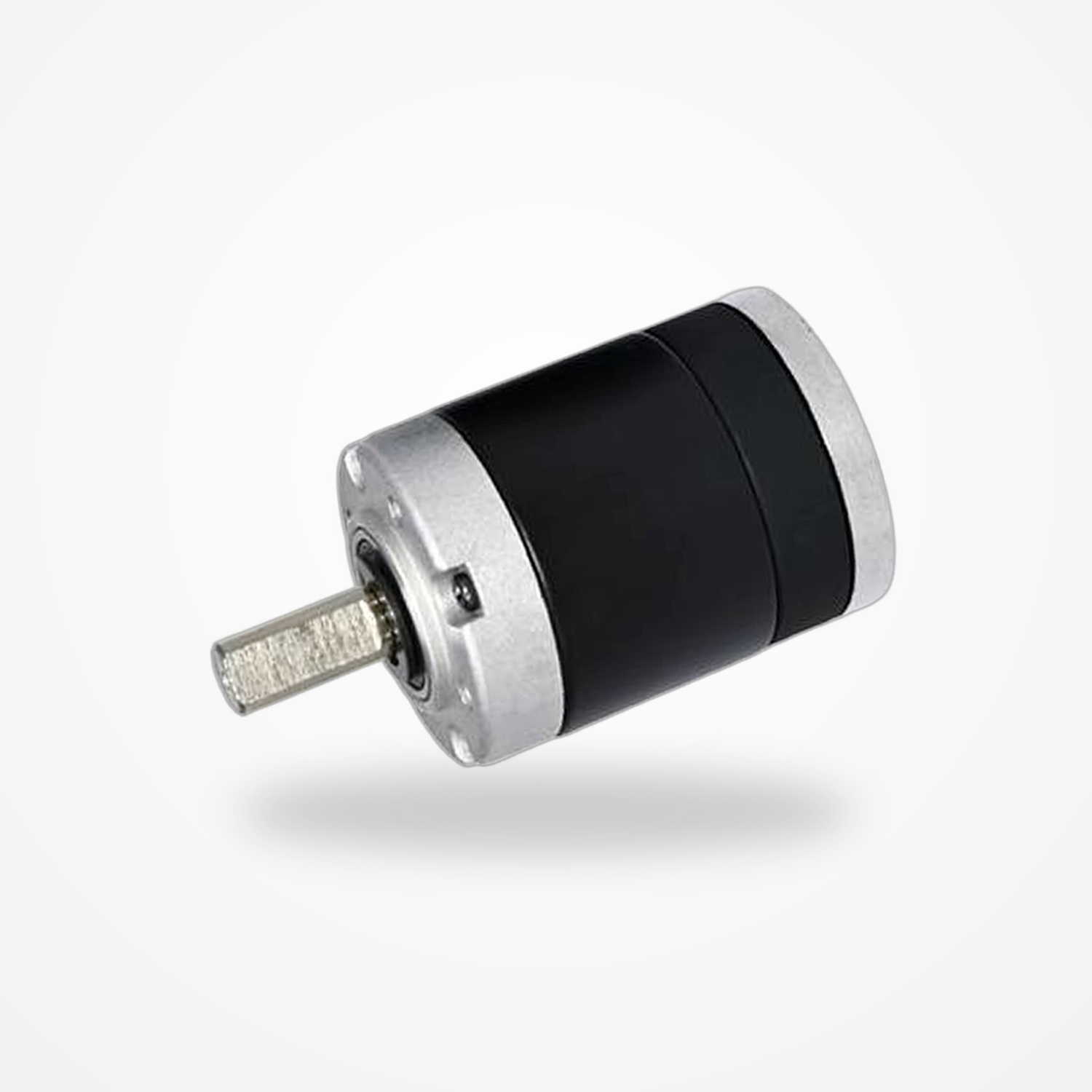

Drawings & Photos
Specifications
| Order No. | Number of Stages | Reduction Ratio | Rated Output Torque (N·m) |
Efficiency (%) |
Backlash (°) |
Length (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
| 3650014 | 2 | 13.73:1 | 2 | 81 | 1.8 | 38.4 | 240 | View SKU |
| 3650019 | 2 | 19.20:1 | 2 | 81 | 1.8 | 38.4 | 240 | View SKU |
| 3650027 | 2 | 26.85:1 | 2 | 81 | 1.8 | 38.4 | 240 | View SKU |
| 3650035 | 2 | 34.98:1 | 2 | 81 | 1.8 | 38.4 | 240 | View SKU |
| 3650049 | 3 | 48.83:1 | 4 | 73 | 2 | 45.7 | 280 | View SKU |
| 3650059 | 3 | 58.86:1 | 4 | 73 | 2 | 45.7 | 280 | View SKU |
| 3650068 | 3 | 68.28:1 | 4 | 73 | 2 | 45.7 | 280 | View SKU |
| 3650082 | 3 | 82.30:1 | 4 | 73 | 2 | 45.7 | 280 | View SKU |
| 3650095 | 3 | 95.47:1 | 4 | 73 | 2 | 45.7 | 280 | View SKU |
| 3650115 | 3 | 115.08:1 | 4 | 73 | 2 | 45.7 | 280 | View SKU |
| 3650181 | 4 | 180.96:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650218 | 4 | 218.12:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650253 | 4 | 253.03:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650305 | 4 | 304.99:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650354 | 4 | 353.81:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650426 | 4 | 426.46:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650495 | 4 | 494.71:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
| 3650596 | 4 | 596.31:1 | 5 | 66 | 2.5 | 53 | 330 | View SKU |
Pricing is quoted on request. Add ratio SKUs to your inquiry and submit for a quote.
Motor Shaft Pinion
| Module | Number of Teeth | Pressure Angle | Helix Angle | Bore Diameter (mm) |
|---|---|---|---|---|
| 0.5 | 11 | 20° | 19° | 2.32 / 3.02 / 3.15 |
| 0.5 | 17 | 20° | 19° | 2.32 / 3.02 / 3.15 |
General Specifications
Output Shaft BearingRolling Bearing
Max. Permissible Radial Load100 N
Max. Permissible Axial Load50 N
Max. Input Speed6000 rpm
Operating Temperature-15 – 80 °C
Frame ShapeRound
CustomizationAvailable on request
Request a Quote
Interested in 36JXBL50K? Add the ratios you need above and submit an inquiry, or contact our engineers for matching support.
